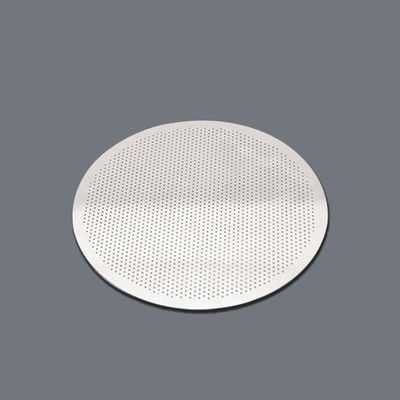

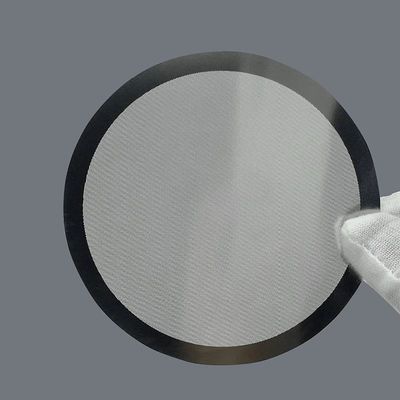

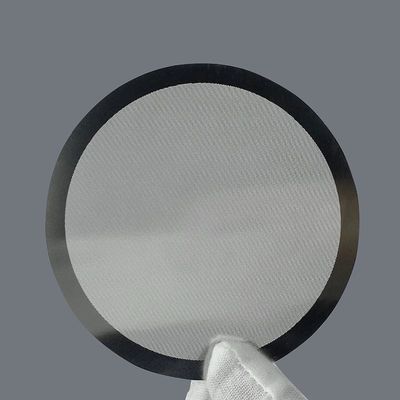

Precision Photo Etched Stainless Steel 304 Filter Mesh With Smooth Edge Finish
Product Details
| Materials: | Stainless Steel (304, 316), Nickel, Copper, Brass, Titanium | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Surface Finish: | Natural Metal Or Electropolished | Other Processing: | Plating, Stamping, Laser Cutting |
| Highlight |
Stainless Steel etched filter mesh,Precision etched filter mesh,Smooth Edge Finish filter mesh |
||
Product Description
Precision Photo Etched Stainless Steel 304 Filter Mesh With Smooth Edge Finish
Brief Introduction of Stainless Steel Etched Filter Mesh:
| Our Precision Photo Etched Filter Mesh with Smooth Edge Finish is engineered for high-performance filtration applications that demand micron-level accuracy and consistency. Made from high-grade stainless steel or other alloys, these meshes are produced using advanced chemical etching technology, ensuring burr-free edges and highly precise apertures for optimal flow and separation. |
Specifications of Stainless Steel Etched Filter Mesh:
Features of Stainless Steel Etched Filter Mesh:
-
Ultra-High Precision: Micron-level tolerances for reliable performance
-
Smooth Edge Finish: No burrs or sharp edges, reducing contamination risk
-
Customizable Patterns: Tailor mesh size, thickness, and shape to meet unique application needs
-
Flat & Consistent Surface: Ideal for sensitive or high-tech environments
-
Non-Deforming Structure: Maintains strength and shape under stress or heat
Applications of Stainless Steel Etched Filter Mesh:
-
Medical Devices: Precision filtration in diagnostic and surgical equipment
-
Aerospace & Defense: Fuel filters, micro-screening for sensitive components
-
Electronics: EMI shielding, dust filtration in high-tech enclosures
-
Automotive: Oil, fuel, and air filtration components
-
Industrial: Chemical processing, fine particle screening, lab instruments
-
Consumer Products: Coffee filters, speaker grilles, vaporizer screens
How to Etch Filter Mesh?
|
Chemical etching, also known as photo etching, begins by applying a photoresist to a metal sheet. The desired mesh pattern is transferred via UV exposure. After development, the exposed areas are etched away using a chemical solution, precisely removing material without mechanical stress or heat distortion. This method ensures highly accurate and consistent hole dimensions across the entire mesh surface. |
The Benefits of Chemical Etching:
- No Burrs or Deformation: Clean, smooth edges that eliminate clogging and wear
- High Precision and Repeatability: Essential for critical filtration tolerances
- Design Flexibility: Intricate and complex shapes are easily achievable
- Cost-Effective for Custom Runs: Ideal for prototypes and medium-volume production
- Material Integrity Maintained: No heat or mechanical force used during production
How to Custom Filter Mesh from Us?
- Send Your Design or Requirements: CAD drawings or detailed specs (aperture size, shape, material)
- Receive Expert Consultation: We’ll help optimize your mesh for performance and manufacturability
- Confirm Specifications: Finalize thickness, pattern, and tolerances
- Rapid Prototyping & Production: From samples to batch production with fast lead times
- Worldwide Shipping: Reliable delivery with quality assurance at every step
Contact us today to get your custom etched filter mesh quote!
