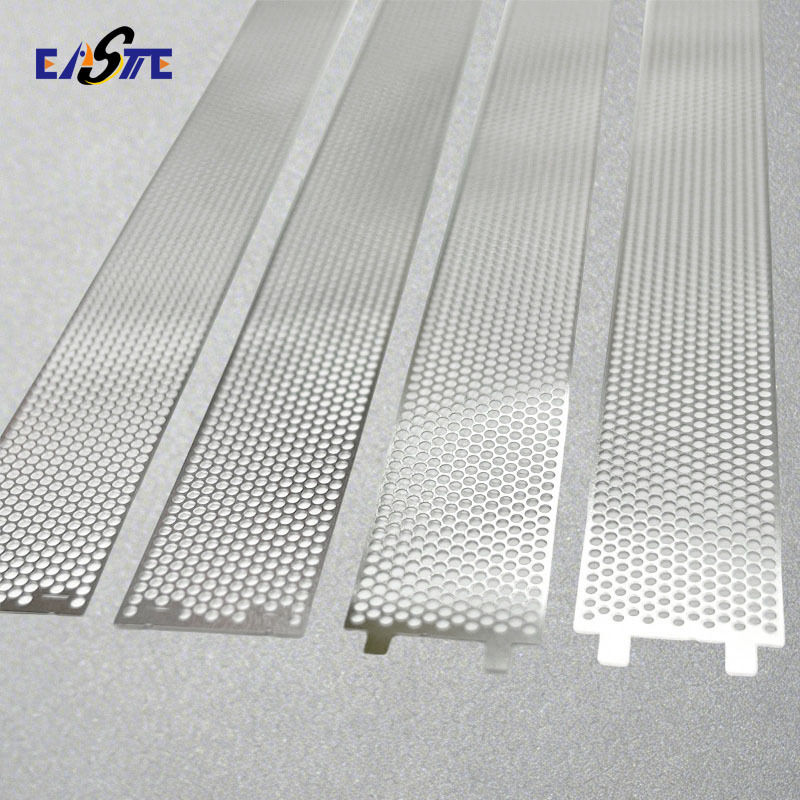

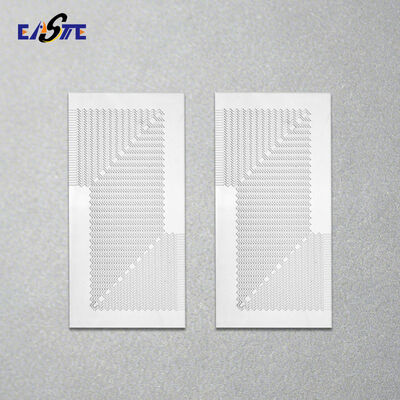

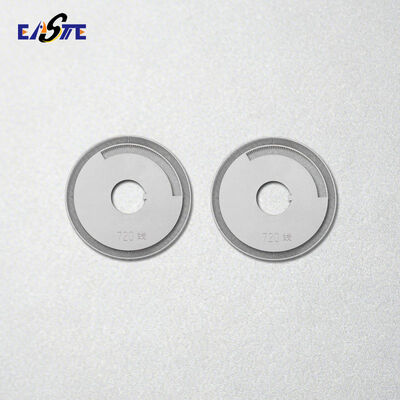

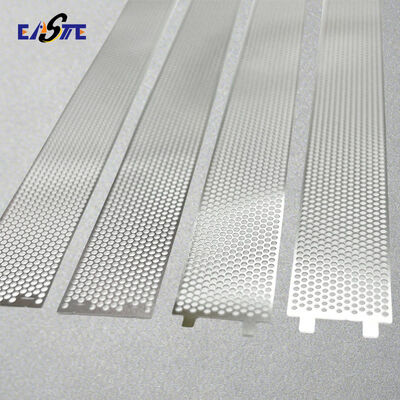

quality Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry factory
<
quality Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry factory
quality Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry factory
quality Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry factory
quality Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry factory
>

Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry

Brand Name: XHS/ Customized
Model Number: XHS/ Customized
Certification: ISO9001 ISO14001
Minimum Order Quantity: 10
Price: 80-300USD
Supply Ability: 55000㎡
Tags

precision etched stainless steel mesh

speaker mesh cover with warranty

photo chemical etched speaker cover

Product Details

Cost: Low Tolerance: ±0.005mm
Material: Metal Complexity: High
Size: Customized Precision: High
Customization: Available Lead Time: 2-3 Weeks
Highlight

Metal Photo Chemical Etching

,

Corrosion Resistance Photo Chemical Etching

,

0.005mm acid etching metal

Product Description

Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry



What is Photo Chemical Etching?


Photo Chemical Etching is a precise, cost-effective process for creating complex, corrosion-resistant parts with fast lead times (2-3 weeks). It supports material thicknesses from 0.02mm to 3.0mm and reduces material waste while ensuring high quality. Ideal for intricate applications like electronic plating and mesh components, it offers reliable solutions in medical, industrial, and scientific fields, providing speed, precision, and flexibility for durable designs.



Xinhaisen's Process capability


Min. Single Piece Product Size 1mm x 1mm
Max. Single Piece Product Size 1800mm*700mm
Processed Thickness 0.02-3mm
Thickness Tolerance ±0.005mm
Min. Hole Precission φ0.02mm
Thinest Line Diameter 0.01mm
General Dimension Tolerance ±0.008mm
Stringing Dimension Tolerance ±0.005mm
Minimum Depth 0.01mm
Depth Precision Tolerance ±0.005mm



Applications of Photo Chemical Etching


  1. Automotive Industry
    Widely used to craft detailed metal parts such as nameplates, grilles, and emblems. The process allows for customization and accurate reproduction of intricate branding or design features on metal surfaces.


2. Etched Mesh Production
Photo Chemical Etching is ideal for creating high-precision etched mesh used in industrial filters, speaker grilles, and decorative panels. Its ability to produce fine, intricate patterns at a low cost makes it a preferred method in this domain.


3. Electronics Manufacturing
This method is commonly used to produce custom metal components for circuit boards, connectors, and shielding enclosures. Its precision ensures consistent quality and supports the complex designs required in modern electronics.


4. Aerospace Applications
Photo Chemical Etching is crucial in the aerospace sector for producing lightweight, precise components like sensor housings, brackets, and filtration elements. Its ability to maintain high tolerances while minimizing material waste is vital for meeting stringent performance and safety standards in this industry.


Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry 0


How to customize Metal Products with Photo Chemical Etching from us?

1.Please send us your design.
We accept the following file formats: DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator


2.Samples making lead time:5-7 days


3.Express:By DHL,Fedex,TNT,around 3-7days.


Why choose us?


  • ISO9001 & ISO14001 Certified: We are committed to high-quality standards and environmental responsibility, ensuring excellence in every step.


  • Fast Prototype & Quick Delivery: Our efficient processes allow us to deliver high-quality products with fast turnaround times.


  • Burr-Free Etching: We guarantee precise etching without burrs or pressure points, ensuring a flawless finish.


  • 13 Years of Etching Experience: With over a decade of expertise, we deliver consistent and reliable results.


  • Professional Engineering & QC Teams: Our dedicated engineering and quality control teams ensure the highest precision and performance for every project.


Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry 1


Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry 2

Product Highlights

Custom Photo Chemical Etching Precision Metal Parts for Automotive, Medical, Aerospace Industry What is Photo Chemical Etching? Photo Chemical Etching is a precise, cost-effective process for creating complex, corrosion-resistant parts with fast lead times (2-3 weeks). It supports material ...
