Name: Photo Chemical Etching Service For 0.02mm To 3mm Thickness Metal Sheet
Brand: Shenzhen Xinhaisen Technology Limited
SKU: XHS/ Customized
Price: 90.00 USD
Availability: InStock

Photo Chemical Etching Service For 0.02mm To 3mm Thickness Metal Sheet

Brand Name:	XHS/ Customized
Model Number:	XHS/ Customized
MOQ:	10
Price:	80-100USD
Payment Terms:	T/T,Western Union
Supply Ability:	10000-100000PCS / week

Process of Photo Chemical Etching:

Design Creation: A detailed CAD design is made to define the etching pattern.
Photoresist Application: A photoresist layer is applied to the metal surface.
Exposure & Development: The design is exposed to UV light and developed, transferring the pattern.
Etching: The metal is immersed in a chemical solution that etches away the exposed areas.
Cleaning: After etching, the component is thoroughly cleaned to remove any residue.
Inspection: The final product is inspected for precision, quality, and tolerance compliance.

Photo Chemical Etching Service For 0.02mm To 3mm Thickness Metal Sheet 5

Typical Etched Products:

Photo Chemical Etching Service For 0.02mm To 3mm Thickness Metal Sheet 6

Applications of Photo Chemical Etching:

Filtration: Micro filter meshes, screens, sieves, dust filter meshes, sugar screens, shower head filter meshes, smoke detector filter meshes, etc...
Electronics: Precision metal shims, washers, EMI/RFI shielding, lead frames, contacts, Spring, Flexures, etc.
Medical: Medical blades, precision shims, washers, implants, gaskets, medical device contacts, etc.
Automotive: Speaker mesh grilles, tread plates, Nameplates, Inlays, Fuel cell plates, Shims, gaskets, washers
Precision Engineering: Precision meshes, test sieves, screens, shims, gaskets, washers, Springs, Flexures, Diaphragms, Labels.
Aerospace & Defense: Connectors, brass contacts, Heat exchanges, EMI/RFI shields, Air intake grilles.

STEEL AND STAINLESS STEELS	0.01mm – 1.5mm	600mm x 1500mm
NICKEL AND NICKEL ALLOYS	0.01mm – 1.5mm	600mm x 1500mm
COPPER AND COPPER ALLOYS	0.01mm – 1.5mm	600mm x 1500mm
ALUMINIUM	0.01mm – 1.5mm	600mm x 1500mm
TITANIUM AND TITANIUM ALLOYS	0.01mm – 1mm	600mm x 550mm

Photo Chemical Machining

Metal Chemical Etching

Metal Etching Service

Precision Metal Etching

Stainless Steel Photo Etching

Titanium Etching

Metallic Bipolar Plates

Photo Etch Mesh

Optical Encoder Disc

PCB EMI Shielding

Nickel Etching

Aluminum Etching

Copper Chemical Etching

Reel To Reel Etching

Pche Heat Exchanger

Photo Chemical Machining

Metal Chemical Etching

Metal Etching Service

Precision Metal Etching

Stainless Steel Photo Etching

Titanium Etching

Metallic Bipolar Plates

Photo Etch Mesh

Optical Encoder Disc

PCB EMI Shielding

Nickel Etching

Aluminum Etching

Copper Chemical Etching

Reel To Reel Etching

Pche Heat Exchanger

products details

Photo Chemical Etching Service For 0.02mm To 3mm Thickness Metal Sheet

Photo Chemical Etching Service For 0.02mm To 3mm Thickness Metal Sheet

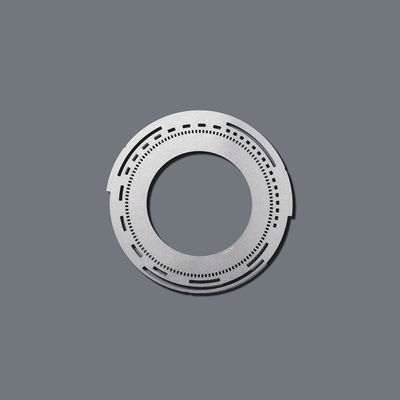

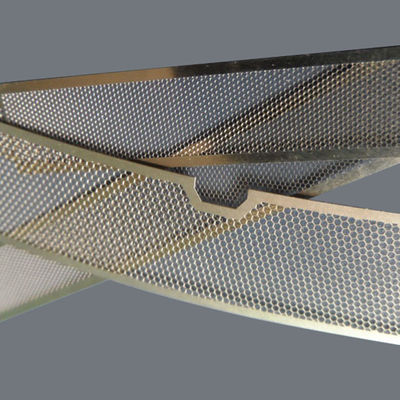

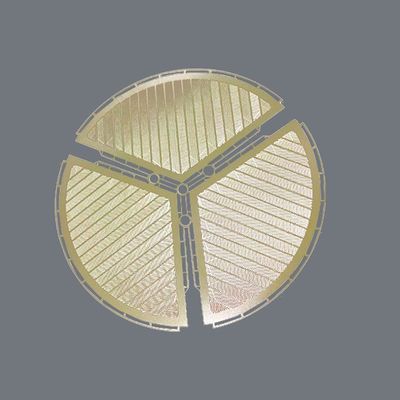

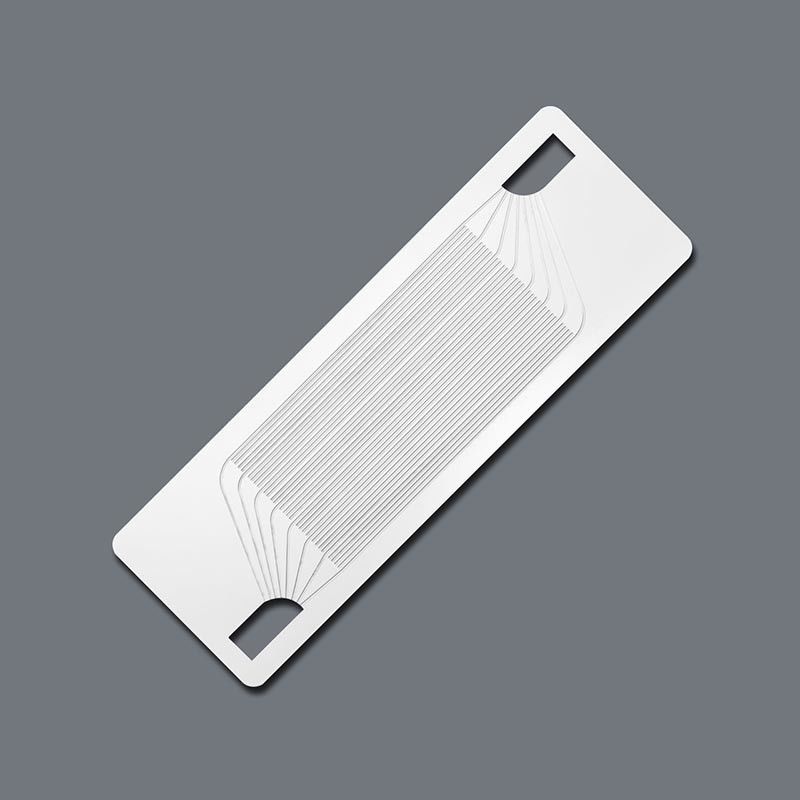

1.5mm metal components

0.02mm metal components

High precision metal parts

The material, thickness and size we photo chemical etching:
