Custom Rf Shield Can Boxes For Mu Metal Stainless Steel Via Photochemical Etching

Name: Custom Rf Shield Can Boxes For Mu Metal Stainless Steel Via Photochemical Etching
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Custom
Price: 14.50 USD
Availability: InStock

Brand Name:	OEM
Model Number:	Custom
MOQ:	1000 pieces
Price:	CN¥1.5-27.72/pieces
Payment Terms:	T/T
Supply Ability:	10000 Piece/Pieces per Day

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Mu Metal ,tinplate ,nickle Silver

Thickness:

0.2mm - 1.0mm Or Custom

Color:

Steel Color

Size:

23.5mm X 8.7mm Or Custom

Quality:

Good Precision, And Controlled

Technics:

Stamping,bending,die Cut, Etching

Prototype Finished:

3-5 Days

Cetification:

Rf Shield Usage:

Construction, Automobile, Mechanic

Item:

Mumetal Shield Case

Port:

Shenzhen

Packaging Details:

for the rf shield box packing : bulk, tray, tape and reel, etc. or as customer's requestments.

Supply Ability:

10000 Piece/Pieces per Day

Highlight:

Custom PCB Shielding Cans

Rf PCB Shielding Cans

Stainless Steel rf shield can

Product Description

Custom rf shield cans and boxes for mu-metal stainless steel via Photochemical Etching Processing

Product Description

RF shield cans and boxes features:

customized size and thickness
can be engraved the patterns according to your design
stable output, fast delivery, high quality, best service
various colors can be available

We professionally produce custom metal parts such as shielding case, screening cans, stamping cover, shrapnel, terminal, hardware, gooseneck tube etc. via photochemical etching and stamping processing.

If you have a need for top quality shielding,Shenzhen Xinhsen is the best choice. We have more than 13 years of experience in the manufacture of EMI shielding, RF shielding, and custom shielding. From prototype to production, we can take care of your shielding needs quickly and economically.

Products export to Germany; Brazil and Western Europe countries. They sell fast in the domestic and oversea market for the high quality and competitive price. Our equipments include stamping machine, CNC punching and bending machine, welding machine, drilling machine, tapping machine, etc.

Company	Shenzhen Xinhaisen Technology Limited
Item	mumetal shield case
Material	mu metal,nickel alloy,brass,gunmetal, stainless steel
Size	23.5mm x 8.7mm or customized
Thickness	0.1mm - 1.0 mm
MOQ	500 pcs, negotiable
Price	Based on material,size,thickness,quantity....
Surface treatment	Galvanized,chrome plated, nickel plated
Process	etching, bending,welding, stamping...
Payment	By t/t,paypal ....

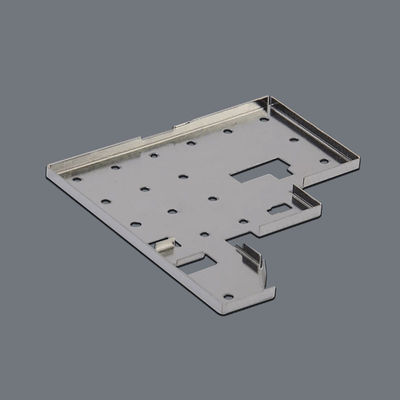

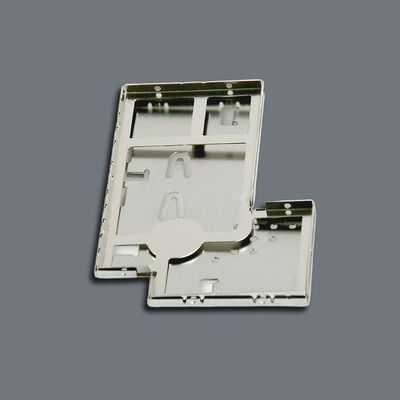

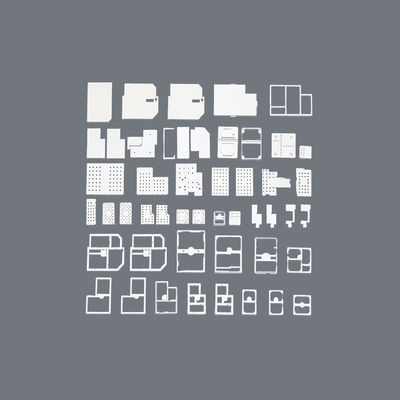

RF shield cans and boxes pictures:

Custom Rf Shield Can Boxes For Mu Metal Stainless Steel Via Photochemical Etching 0

Custom Rf Shield Can Boxes For Mu Metal Stainless Steel Via Photochemical Etching 1

Custom Rf Shield Can Boxes For Mu Metal Stainless Steel Via Photochemical Etching 2

Shenzhen Xinhaisen manufactures your RFI / EMI shielding enclosures for attenuating components ranging in operating (and harmonic) frequencies from a few hertz to over 50 GHz.

The type of metal that you specify may have an impact on an RFI / EMI shield’s performance. In general, shielding against frequencies of 15 MHz or lower is a bulk material effect, and can best be served by employing a ferromagnetic metal such as steel. For greater attenuation at these lower frequencies, metals with high permeabilities and low core losses such as Permalloy 80 or MuMetal are good candidates.

RF shield cans and boxes Surface treatment

We could do as below finish:

1) Gold plated	11) Antique bronze brushed
2) Silver plated	12) Nickel plated
3) Black nickel	13) Bronze finish
4) Yellow nickel	14) Chrome /Nickel satin
5) Satin gold	15) Satine / polished stainless steel
6) Tea plated	16) Radiant finish
7) Chrome plated	17) Sky green
8) Brass brushed	18) Stain sky green
9) Polished brass	19) Dark antique copper
10)Antique copper brushed	20) Dark antique brass

Custom Rf Shield Cans and boxes Photochemical Etching Process

Material Prep: Clean and degrease metal sheets.
Photoresist Coating: Apply UV-sensitive resist.
Exposure: Transfer flow field design via photomask.
Development: Remove unexposed resist to reveal etching areas.
Etching: Immerse in etchant to dissolve unprotected metal.
Strip & Clean: Remove residual resist and polish.
QC Inspection: Validate dimensions, conductivity, and surface finish.

Custom Rf Shield Can Boxes For Mu Metal Stainless Steel Via Photochemical Etching 3

Custom Rf Shield Cans and boxes FAQ Section

Q: What kind of Shield cans and boxes can we fabricate?

A: We can fabricate RFI and EMI shielding cans and boxes.

Q: What process do we use?

A: We use photochemical etching, welding and stamping process.

Q: What's the lead time?
A: 5-7 days for samples, 15 days for mass production.

Q: Do you provide RoHS-compliant materials?
A: Yes, all materials meet RoHS/REACH standards.

How to customize the Rf Shield Cans and boxes from us.

1.Please send us your design.

We accept the following file formats:

DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator

2.Samples making lead time:3-10days

3.Express:By DHL,Fedex,TNT,around 3-7days

Why Choose Us?
✅ 13+ Years Expertise: Trusted by global clients in automotive, energy, and aerospace.

✅ ISO 9001/14001 & IATF 16949 Certified: Guaranteed quality and sustainability.
✅ Prototype Delivery time: 3-7days.
✅ Mass Production: 2-3Weeks

✅Competitive Pricing: Optimized processes for cost efficiency.
