ISO9001 Etched Metal Encoder Discs 48hr Rapid Prototyping Service

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Metal,alloy

Application:

Position Sensing

Size:

Various Sizes Available

Type:

Rotary Encoder Discs

Color:

Silver,copper

Thickness:

0.01-2.0MM

Tolerance:

+/-0.01mm

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

ISO9001 Encoder Discs

Metal Encoder Discs

Etched absolute encoder disc

Product Description

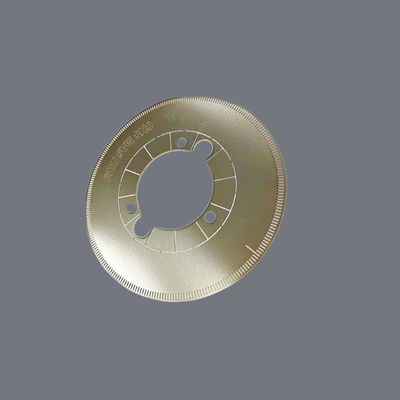

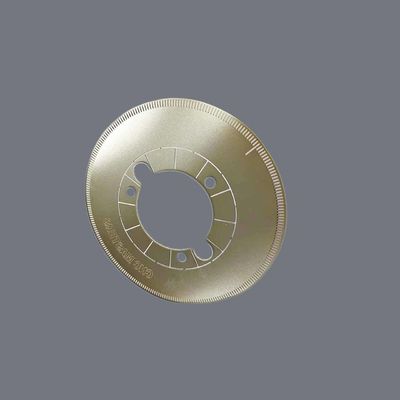

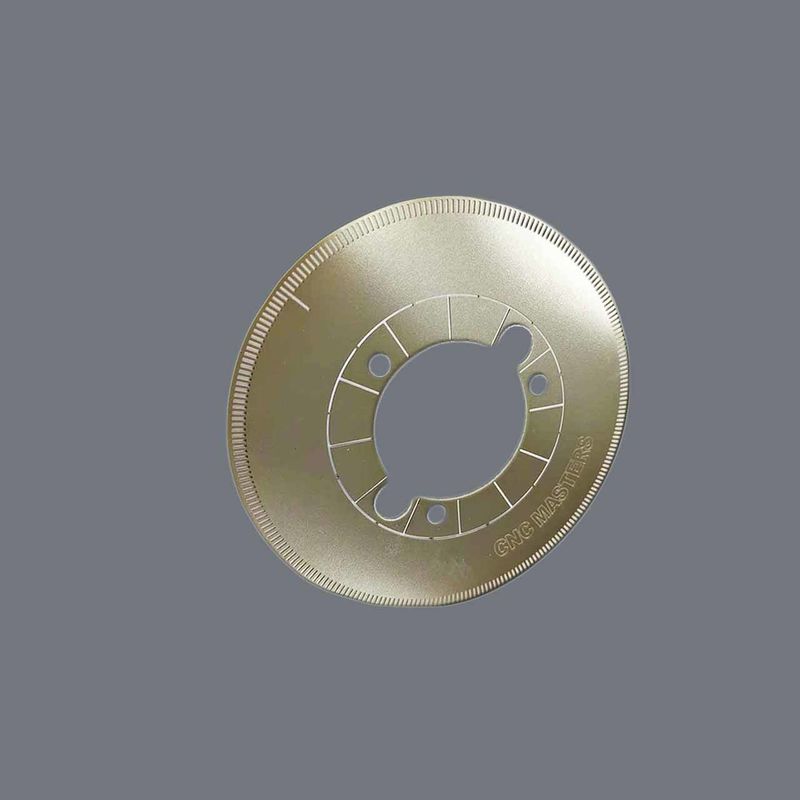

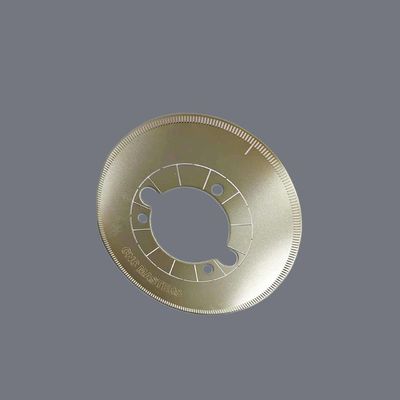

ISO9001 Certified Etched Metal Encoder Discs 48hr Rapid Prototyping Service

Overview
Xinhsen Technology specializes in manufacturing high-accuracy chemically etched encoder discs for optical and magnetic encoding systems. Our precision etching process produces code discs with exceptional dimensional stability and pattern accuracy for motion control applications across various industries.

Key Features & Benefits

✔ Ultra-High Resolution - Achieves up to 10,000 lines per revolution
✔ Material Expertise - Stainless steel, brass, aluminum, and specialty alloys
✔ Sub-Micron Accuracy - ±0.003mm pattern positioning tolerance
✔ Burr-Free Edges - Critical for consistent signal generation
✔ Custom Designs - Absolute/incremental patterns, custom geometries
✔ Fast Delivery - Prototypes in 7 days, volume production scaling

Technical Specifications

Parameter	Specification
Material Options	304/316 Stainless Steel, Brass (C2600), Aluminum (5052), Beryllium Copper
Thickness Range	0.02mm - 1.0mm (standard)
Diameter Range	5mm - 300mm (custom sizes available)
Line Resolution	100 - 10,000 lines/revolution
Pattern Accuracy	±0.003mm radial/angular positioning
Minimum Feature Size	0.015mm line width
Surface Finish	Matte, polished, or custom coatings
Concentricity	≤0.01mm TIR
Flatness	≤0.02mm/m²

Available Encoder Disc Types

• Incremental Encoders: Standard square wave patterns
• Absolute Encoders: Custom code patterns (Gray, binary, etc.)
• Hybrid Discs: Combined position/zero markers
• High-Temp Discs: Special alloys for extreme environments
• Micro-Encoders: Miniature discs for compact devices

Performance Advantages

• Excellent Signal Quality: Precise edges for clean transitions
• Thermal Stability: Low CTE materials available
• Durability: Resists wear in harsh environments
• Weight Optimization: Thin yet rigid constructions
• Custom Markers: Index, zero-position, or alignment features

Quality Assurance

• 100% automated optical inspection
• High-magnification pattern verification
• Dynamic balance testing (for high-speed applications)
• Material certification (RoHS/REACH compliant)
• ISO 9001:2015 certified production
