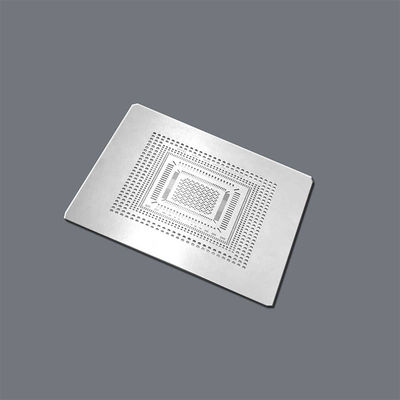

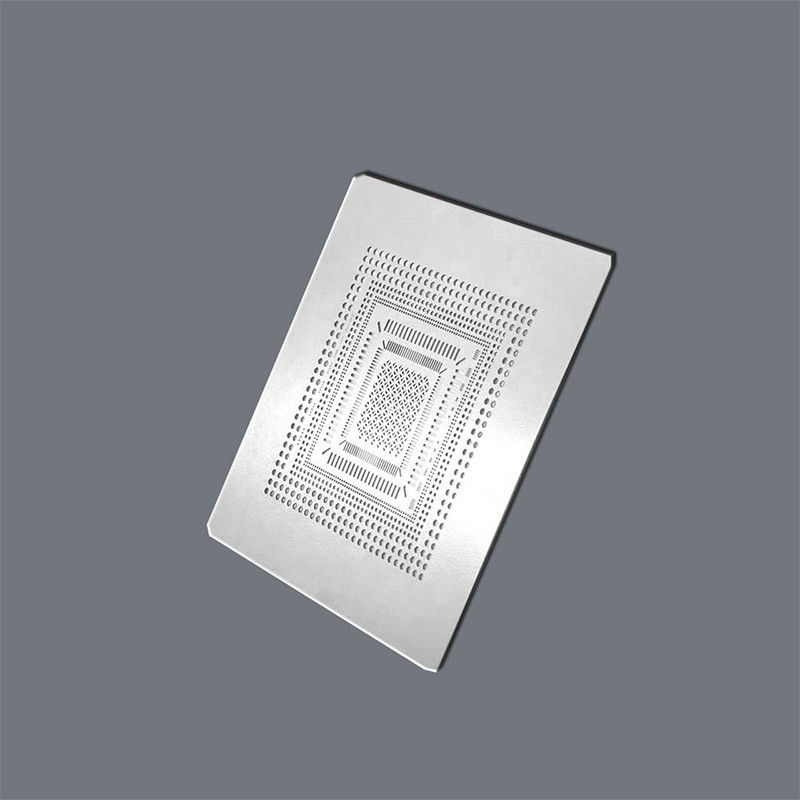

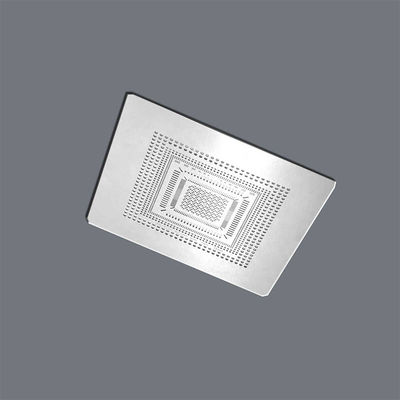

Precision Chemical Etched Titanium Runner Plate ±0.03mm Tolerance

Precision Chemical Etched Titanium Runner Plate ±0.03mm Tolerance

Precision Chemical Etched Titanium Runner Plate ±0.03mm Tolerance

Brand Name: XHS/Customize
Model Number: Customize
MOQ: 10
Price: 50-100USD
Payment Terms: T/T
Supply Ability: 10000-100000PCD / week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001, ISO 14001, IATF 16949
Features:
Lightweight, Corrosion Resistant, High Strength
Material:
Titanium
Application:
Aerospace, Medical, Electronics, Automotive, Etc.
Surface Finish:
Smooth
Lead Time:
2-3 Weeks
Etching Type:
Chemical Etching
Precision:
High
Size:
Customized
Packaging Details:
PE bags and Carton
Supply Ability:
10000-100000PCD / week
Highlight:

High Precision photo chemical etching

,

0.03mm photo chemical etching

,

High Precision photochemical etching process

Product Description

Photo Chemical Runner Plate ±0.03mm Tolerance Custom Metal Etching

Overview
Xinhsen Technology specializes in manufacturing high-precision chemically etched runner plates for plastic injection molding, die casting, and other industrial applications. Our runner plates offer superior flow control, exceptional durability, and precise channel geometries that optimize material distribution in production processes.


Key Features & Benefits

1.Precision Channel Geometry - Achieves ±0.03mm dimensional accuracy
2.Material Versatility - Tool steel, stainless steel, and high-wear alloys
3.Complex Designs - Intricate runner patterns without machining limitations
4.Burr-Free Surfaces - Smooth channels prevent material buildup
5.Fast Turnaround - Prototypes in 7-10 days, mass production capacity
6.Cost-Effective - No expensive CNC machining required for complex designs


Technical Specifications

Parameter Specification
Plate Size Up to 600mm × 800mm (custom sizes available)
Hardness Up to HRC 52 (heat treatable options)
Flatness ≤0.05mm/m²
Surface Finish Ra ≤ 0.4μm (mirror polish available)
Dimensional Tolerance ±0.03mm (standard), ±0.01mm (high precision)
Channel Width 0.5mm - 20mm (customizable)
Thickness Range 1.0mm - 12.0mm (standard)
Material Options Stainless Steel (420, 304), Tool Steel (P20, H13)


Performance Advantages

Optimized Flow: Precise channel geometries ensure consistent material distribution
Wear Resistance: Durable materials extend service life
Thermal Stability: Maintains dimensional accuracy under temperature variations
Corrosion Resistance: Ideal for harsh molding environments
Easy Maintenance: Smooth surfaces simplify cleaning


Available Runner Plate Types

Standard Runner Plates: For general injection molding applications
Hot Runner Plates: With integrated heating elements
Micro-Runner Plates: For precision small-part molding
Multi-Cavity Plates: Complex distribution systems
Custom Configurations: Including special coatings or surface treatments


Quality Assurance

Material certification for all raw materials
100% dimensional inspection
Surface roughness testing
Pressure testing available
Heat treatment validation (when applicable)


Precision Chemical Etched Titanium Runner Plate ±0.03mm Tolerance 0
