Titanium Etching 0.5mm Ultra Thin Printed Circuit Heat Exchanger Plates For Hydrogen
Product Details
| Materials: | Titanium Stainless Steel, Copper Or Customized | Thickness: | 0.03mm - 3.0mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
OEM Titanium Etching,0.03mm Titanium Etching,Ultra Thin metal etching |
||
Product Description

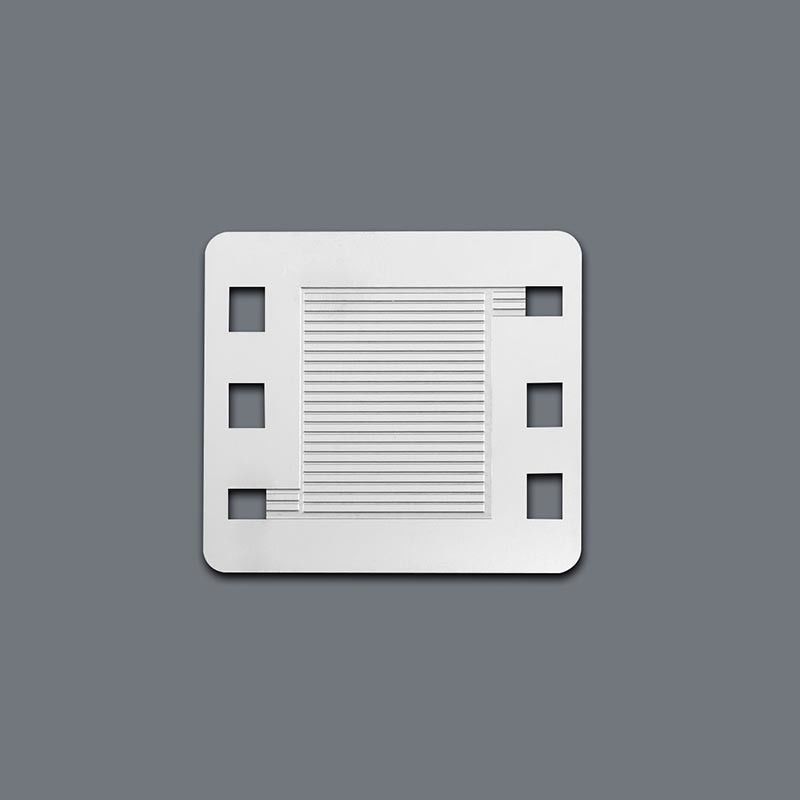

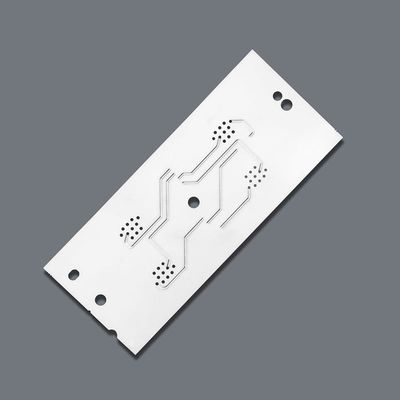

Titanium Etching 0.5mm Ultra Thin Printed Circuit Heat Exchanger Plates For Hydrogen
Introduction of Printed Circuit Heat Exchanger Plates:
Our Hydrogen Printed Circuit Heat Exchanger (PCHE) Etching service delivers precision-engineered microchannel structures tailored for hydrogen energy applications. Utilizing advanced photochemical etching technology, we ensure ultra-high accuracy, excellent surface integrity, and optimal flow dynamics essential for next-generation heat exchangers.
Technical Specifications of Printed Circuit Heat Exchanger Plates:
| Channel Width Range: | 0.1 mm – 2.0 mm |
| Channel Depth Range: | 0.05 mm – 2.0 mm |
| Sheet Size Capacity: | Up to 1800 mm × 650 mm |
| Material Thickness: |
0.03 mm – 3.0 mm |
| Etching Accuracy: | ±10–20 microns |
Key Features of Printed Circuit Heat Exchanger Plates:
-
High Precision: Achieve channel geometries with tight tolerances up to ±10 microns.
-
Customizable Designs: Support complex and multi-layer microchannel configurations based on specific thermal and mechanical requirements.
-
Superior Material Compatibility: Specialized in high-performance alloys such as 316L, Copper, and Titanium Alloy for hydrogen service environments.
-
Enhanced Surface Quality: Smooth channel walls minimize pressure drops and resist hydrogen embrittlement.
-
Scalable Production: From prototypes to mass production with consistent quality and repeatability.
Applications of Printed Circuit Heat Exchanger Plates:
-
Hydrogen refueling stations
-
Hydrogen storage and distribution systems
-
Fuel cell cooling systems
-
Cryogenic hydrogen liquefaction processes
-
High-efficiency hydrogen compressors
Advantages of Chemical Etching:
-
No mechanical stress, deformation or burr on the workpiece
-
Higher complexity and density compared to mechanical milling or laser cutting
-
Cost-effective for both low and high-volume production
Quality Assurance:
Our PCHE etching processes follow ISO 9001 and AS9100 quality management standards, with full traceability, material certification, and rigorous inspection protocols including optical and dimensional verification.
Why Choose Us:
With extensive experience in hydrogen energy applications and precision manufacturing, we provide etching solutions that enable superior heat exchanger performance, supporting the drive toward a sustainable hydrogen economy.
