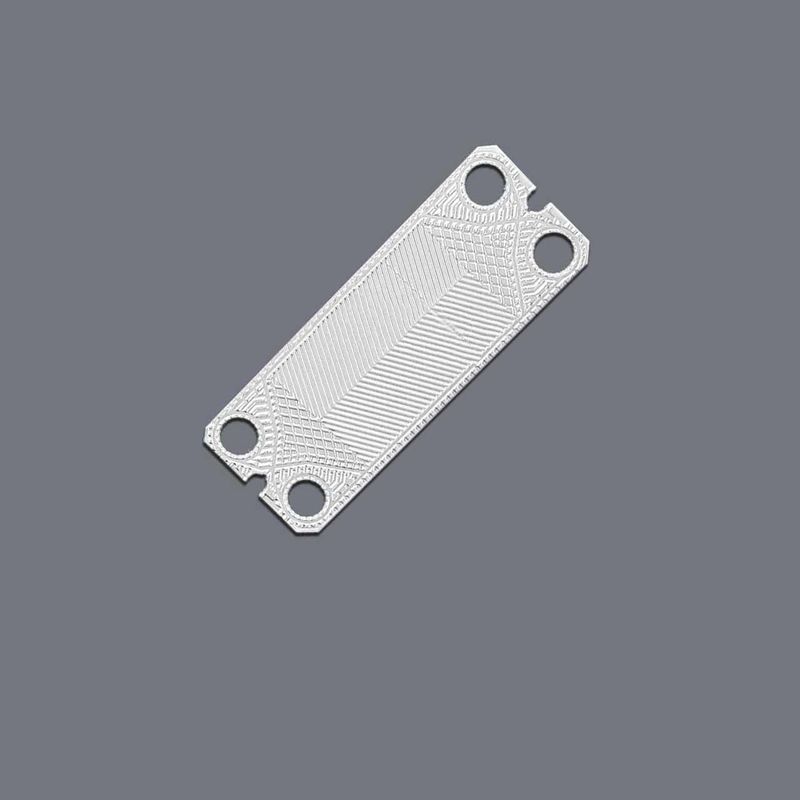

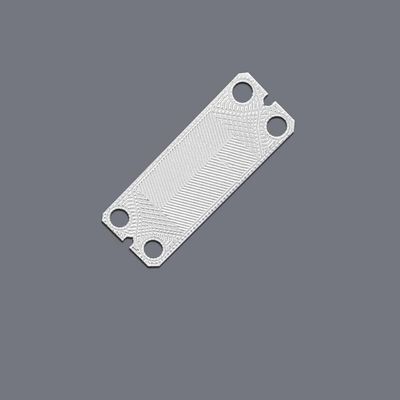

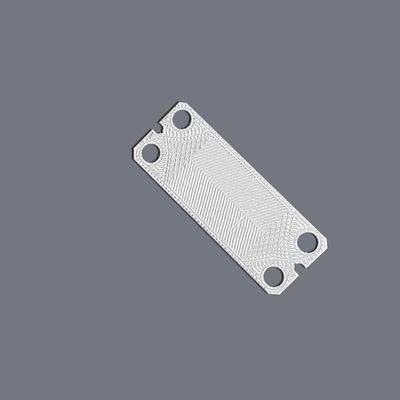

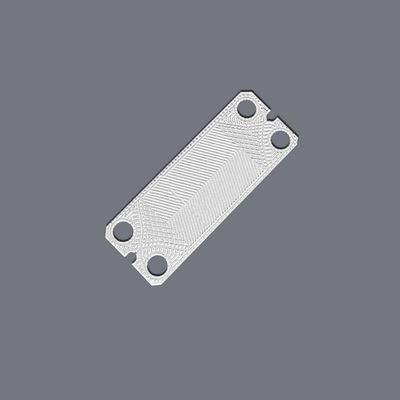

Chemical Etching Metallic Bipolar Plates for Fuel Cell Energy Industry

Name: Chemical Etching Metallic Bipolar Plates for Fuel Cell Energy Industry
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Customize
Price: 75.00 USD
Availability: InStock

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Titanium, Aluminum, Alloy

Application:

Hydrogen Energy Systems/Solid Oxide Fuel Cells

Dimensions:

Customizable

Efficiency:

High

Compatibility:

Suitable For Various Fuel Cell Types

Technology:

Photo Chemical Etching

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

Metal bipolar plate in fuel cell

0.03mm Holes bipolar plate in fuel cell

Custom bipolar plates for pem fuel cells

Product Description

Chemical Etching Metallic Bipolar Plates for Fuel Cell Energy Industry

Bipolar Plates Overview
Xinhaisen Technology is a leading manufacturer of precision-etched bipolar plates for PEM fuel cells, redox flow batteries, and other electrochemical applications. Our advanced chemical etching technology enables mass production of complex flow field patterns with micron-level accuracy, offering superior performance and cost advantages over traditional manufacturing methods.

Bipolar Plates Key Features

·Ultra-Precise Flow Channels - Maintains ±0.03mm pattern accuracy
·Material Expertise - Corrosion-resistant alloys with conductive coatings
·Design Flexibility - Serpentine, parallel, interdigitated, or custom patterns
·Cost Efficiency - 50-70% cost reduction vs. CNC machining
·Rapid Prototyping - Functional samples in 7-10 working days
·Scalable Production - Seamless transition from prototypes to mass production

Bipolar Plates Specification

Parameter	Specification
Material	Stainless Steel, Titanium, Nickel, Aluminum,etc
Thickness	0.5mm - 3.0mm
Dimensional Tolerance	±0.01mm (high precision)
Surface Roughness	Ra 0.8μm (as-etched), Ra 0.4μm (polished)
Flatness	≤0.05mm/m²

FAQ

1.Why Choose Xinhaisen?

·13+ years of specialized etching experience

·Engineering support from design to final product

·Strict confidentiality protection for all customer designs

2.How long does production and shipping take?

·Sample orders can be shipped in 3-5 days.

·Mass production lead time depends on quantity, typically 1-2 weeks. Express shipping is available.

3. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;

Accepted Payment Type: T/T,Paypal,Western Union,Cash.

Easy to order! Welcome to contact us!
