OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy

Name: OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Customize
Availability: InStock

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	can be negotiated
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

SUS301, SUS304, SUS316

Application:

Hydrogen Energy

Processing Technology:

Photo Chemical Etching

MOQ:

Can Be Negotiated

Size:

Customizable

Packaging Details:

5-10 work days

Supply Ability:

10000-100000PCD / week

Highlight:

OEM Printed Circuit Heat Exchanger

High Precision Printed Circuit Heat Exchanger

SUS301 pche exchanger

Product Description

OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy

PCHE Overview

Xinhaisen Technology specializes in manufacturing high-efficiency Printed Circuit Heat Exchangers (PCHE) through advanced chemical etching technology. Our PCHEs deliver superior thermal performance with compact designs, ideal for extreme-pressure and high-temperature applications in energy, aerospace, and chemical processing industries.

PCHE Specification

Parameter	Specification
Material	316L Stainless Steel, Titanium, Nickel Alloys,etc.
Surface Roughness	(Ra) ≤1.6μm (as-etched), ≤0.4μm (polished)
Temperature Range	-200°C to +900°C (material dependent)
Heat Transfer Efficiency	Heat Transfer Efficiency
Plate Thickness	0.5mm - 5.0mm

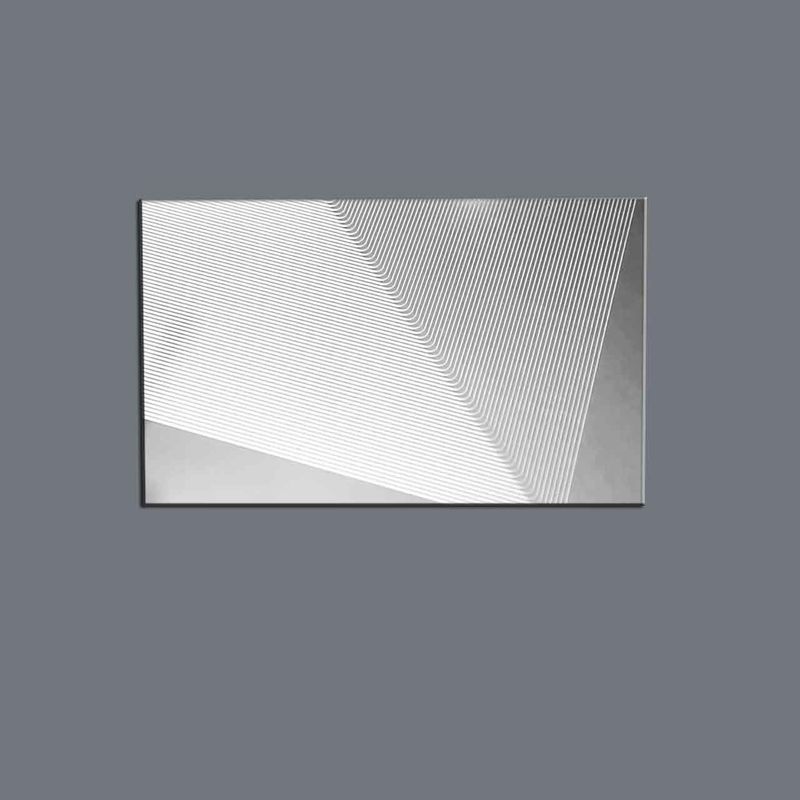

OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy 0

Quality Assurance

·Non-Destructive Testing :

·100% X-ray inspection (ASTM E2866)

·Dye penetrant testing (ISO 3452)

·Performance Validation :

·Thermal cycling (1000+ cycles)

·Hydrostatic pressure testing (per ASME Section VIII)

PCHE Applications

·Supercritical CO₂ power cycles

·LNG heat exchangers

·Nuclear reactor cooling

·Aerospace thermal management

Why Choose Xinhaisen?

·Micron-Level Precision – Achieve complex micro-channel geometries

·Material Expertise – Process exotic alloys with tight tolerances

·Turnkey Solutions – From CFD optimization to final assembly

·Cost Efficiency – 40% savings vs. machined alternatives

Welcome to contact!
