Chemical Etching Printed Circuit Heat Exchanger Plates with Optimal Corrosion Resistance
Product Details
| Materials: | Stainless Steel Or Customized | Platethickness: | 0.5mm-5.0mm |
|---|---|---|---|
| Operating Pressure: | Up To 20 Bar | Application: | Hydrogen Energy |
| MOQ: | Can Be Negotiated | Processing Technology: | Photo Chemical Etching |
| Highlight |
Chemical etching PCHE heat exchanger plates,Corrosion-resistant printed circuit heat exchanger,High-performance PCHE plates with warranty |
||
Product Description

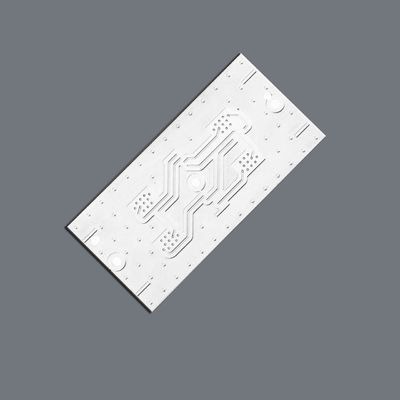

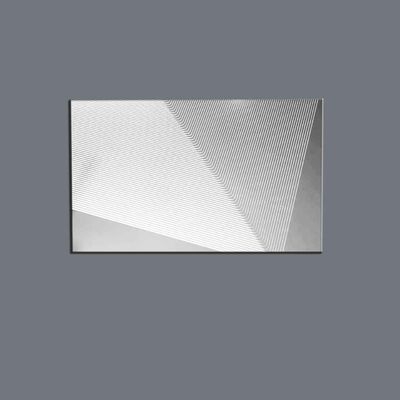

Chemical Etching Printed Circuit Heat Exchanger Plates with Optimal Corrosion Resistance
PCHE Overview
Printed Circuit Heat Exchangers (PCHE) are ultra-compact and efficient heat exchangers. Built by diffusion-bonding precision-etched metal plates, they excel in high-pressure and high-temperature applications where space and weight are critical.
Manufacturing Process
We use our core precision metal etching expertise to create complex micro-channels on thin plates. These plates are then fused into a single, solid block using diffusion bonding, creating a strong, leak-proof unit.
PCHE Features
-
Extremely High Efficiency: Compact design offers a large surface area for superior heat transfer.
-
High Pressure & Temperature Resistance: Robust monolithic structure handles extreme operating conditions.
-
Lightweight & Compact: Significantly smaller and lighter than traditional shell-and-tube heat exchangers.
-
Customizable Designs: Etching allows for complete flexibility in channel geometry and layout.
-
Robust & Reliable: Diffusion bonding creates a high-integrity core.
PCHE Specifications
|
Parameter |
Specification |
|
Material |
316L Stainless Steel, Titanium, Nickel Alloys,etc. |
|
Surface Roughness |
(Ra) ≤1.6μm (as-etched), ≤0.4μm (polished) |
|
Temperature Range |
-200°C to +900°C (material dependent) |
|
Heat Transfer Efficiency |
Heat Transfer Efficiency |
|
Plate Thickness |
0.5mm - 5.0mm |
|
PCHE Applications
-
Oil & Gas: Gas processing, LNG, subsea systems.
-
Aviation & Aerospace: Environmental control systems, oil cooling.
-
Industrial Processes: Waste heat recovery, chemical processing.
-
Power Generation: Supercritical CO2 power cycles.
-
Automotive & Marine: Next-generation thermal management systems.
Our Advantages
-
Precision Etching Expertise: We specialize in micro-etching, achieving channel widths from 0.2mm and tolerances of ±0.01mm.
-
Rapid Prototyping & High-Volume Production: We can handle both urgent, small-batch orders and large-scale production runs with speed and flexibility.
-
Material Versatility: We can process a wide range of metals, including stainless steel, titanium, and high-performance alloys, suitable for diffusion bonding.
-
Proven Quality: Known for high precision, fast turnaround, and diverse capabilities, earning a strong reputation among our clients.
Why Choose Xinhaisen?
Choose Xinhaisen as your reliable partner for PCHE core etching. We transform complex designs into high-performance reality. Our unparalleled speed from material procurement to manufacturing, combined with our commitment to the highest quality standards, ensures you get a superior, reliable product that meets your most demanding thermal and mechanical requirements.
Welcome to contact us at any time!
