High Precision Half Etching Printed Circuit Heat Exchanger Plates

Name: High Precision Half Etching Printed Circuit Heat Exchanger Plates
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Custom
Price: 90.00 USD
Availability: InStock

Brand Name:	XHS/ Customized
Model Number:	Custom
MOQ:	10
Price:	80-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001

Materials:

Stainless Steel, Titanium Or Customized

Thickness:

0.02mm - 1.5mm

Tolerance:

+/- 0.005mm

Production Process:

Photo Chemical Etching, Plating, Stamping, Laser Cutting

Packaging Details:

PE bags and Cartons / Customized

Supply Ability:

10000-100000PCS / week

Highlight:

Chemical Etching Printed Circuit Heat Exchanger

1800mm Printed Circuit Heat Exchanger

Aerospace heat exchanger circuit

Product Description

High Precision Half Etching Printed Circuit Heat Exchanger Plates

The Printed Circuit Heat Exchanger (PCHE) utilizes diffusion-bonded corrosion-resistant plates with microchannel circuits to achieve high thermal efficiency and compactness. Designed for extreme pressures and temperatures, it serves oil/gas, energy, and chemical industries, offering durability and space-saving advantages through its welded, plate-type architecture.

Specifications of Half Etching Printed Circuit Heat Exchanger Plates

Item	Customized Titanium PCHE
Material	Stainless steel 201,202,304,316,410 etc./ Aluminum/ Copper/ Brass/ Steel alloy/ Titanium/ Various kinds of material can be chosen
Thickness	0.02mm - 3mm according to different request
Minimum single part	1mm*1mm
Maximum single part	1500mm*650mm
Surface Treatment	Polishing,brushing,electroplating,nickel plating,anodizing,etc...
Characteristics	Outstanding corrosion resistance Light-weight Very good strength and hardness Excellent thermal conductivity High electrical conductivity Burr free and clean Full recyclability

Advantages of Etching in PCHE Plates Manufacturing

Precision Microchannel Fabrication: Enables ultra-fine, complex flow paths (<0.5mm) for maximized heat transfer efficiency and uniform fluid distribution.
Design Flexibility: Supports customizable channel geometries (zigzag, wavy) tailored to thermal/fluid dynamics requirements.
Material Integrity Preservation: Stress-free etching avoids mechanical deformation, maintaining plate strength for high-pressure operations (up to 600 bar).
Scalability & Consistency: Photochemical processes ensure repeatable, large-scale production of corrosion-resistant plates (e.g., stainless steel, alloys)

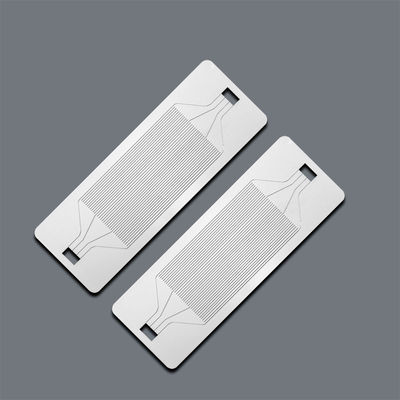

High Precision Half Etching Printed Circuit Heat Exchanger Plates 1

The production process of chemically etching PCHE Plates

1) Material selection (stainless steel/titanium);

2) Surface cleaning;

3) Photoresist coating and UV masking to define flow channel patterns;

4) Exposing and Developing;

5) Chemical etching to dissolve exposed areas;

6) Post-processing (resist removal, residue neutralization);

7) Quality inspection.

Precise control of etching parameters (time, temperature, concentration) ensures uniform channel geometry for optimized gas distribution, conductivity, and corrosion resistance while maintaining structural integrity. This method supports scalable, cost-efficient mass production.

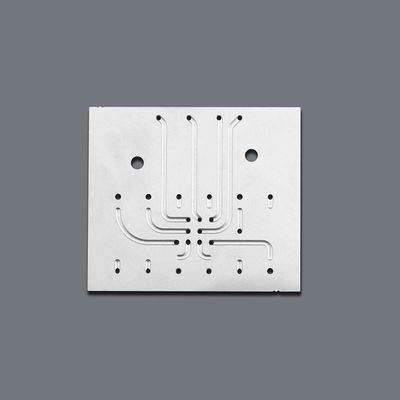

High Precision Half Etching Printed Circuit Heat Exchanger Plates 2

How to etching custom PCHE Plates?

1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator

2. Samples making lead time:5-7days

3. Express:By DHL, FedEx, TNT, Air, Sea.
