Acid Etching Metal High Precision Stainless Steel Shims & Gaskets

Acid Etching Metal High Precision Stainless Steel Shims & Gaskets

Brand Name: XHS/ Customized
Model Number: Custom
MOQ: 10
Price: 50-100USD
Payment Terms: T/T
Supply Ability: 10000-100000PCS / week
Detail Information
Place of Origin:
China
Certification:
ISO 9001, ISO 14001
Materials:
Stainless Steel Or Customized
Thickness:
0.02mm - 1.5mm
Tolerance:
+/- 0.005mm
Production Process:
Photo Chemical Etching, Plating, Stamping, Laser Cutting
Packaging Details:
PE bags and Cartons / Customized
Supply Ability:
10000-100000PCS / week
Highlight:

Metal stainless steel shims

,

High Precision stainless steel shims

,

0.02mm stainless steel gaskets

Product Description

Acid Etching Metal High Precision Stainless Steel Shims & Gaskets


Shims&Gasket are generally placed into an empty space to provide support and / or balance, the chemical etching process offers high precision parts, that have a burr free finish and has low cost tooling. Photo chemical etching shims and spacers are made from various grades of steel, traditionally mild steel, carbon steel and stainless steel.


Specifications of Precision Shims & Gaskets


Item Etching metal shim & gasket
Material Eco-friendly copper, stainless steel, carbon steel, etc.
Thickness 0.03-0.4mm, it is according to your request
Tolerance +/-0.01mm (according to your products)
Size & shape As you design
Process Chemical etching /Photo etching
Feature Precision, Burr free, without connections

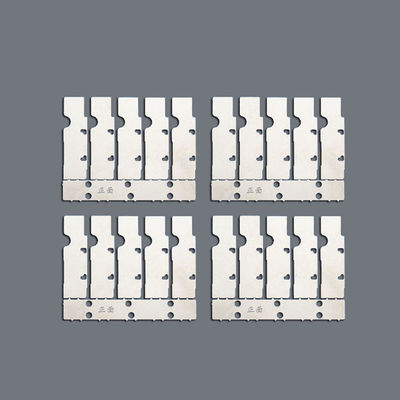

Acid Etching Metal High Precision Stainless Steel Shims & Gaskets 0



Advantages of Acid Etching Precision Stainless Steel Shims & Gaskets


Manufacturing metal washer shims using the photochemical etching process offers several distinct advantages, such as high precision and accuracy, uniform thickness and complex geometries, material efficiency, design flexibility, high-quality surface finish, smooth surface and no mechanical damage, high production efficiency, batch processing and fast turnaround, cost-effectiveness, no tooling costs and versatility.



Why Chonnse Photo Etching Process?


Photo etching is a very cost-effective alternative of stamping, laser cutting, punching or CNC machining when the thickness

of metal parts is between 0.02mm to 1.5mm.


                                                                                       • Cost-effective: no expensive molding tool required.

                                                                                        Fast sampling: sample within 2-3 days, not weeks.

                                                                                        High precision, micro and complex.

                                                                                        No additional cost for complexity.

                                                                                        Burrs and stress free, no sharp edge.

                                                                                        Mass production within days, not month.

                                                                                        Various material options: stainless steel, copper, brass, aluminum, alloys, titanium and so on.

                                                                                        No effect on material temper or magnetism.



How to etching metal parts from us?


                                                                    1.Please send us your design.
                                                                    We accept the following file formats: DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator
                                                                     2.Samples making lead time:3-10days
                                                                     3.Express:By DHL,Fedex,TNT,around 3-7days.

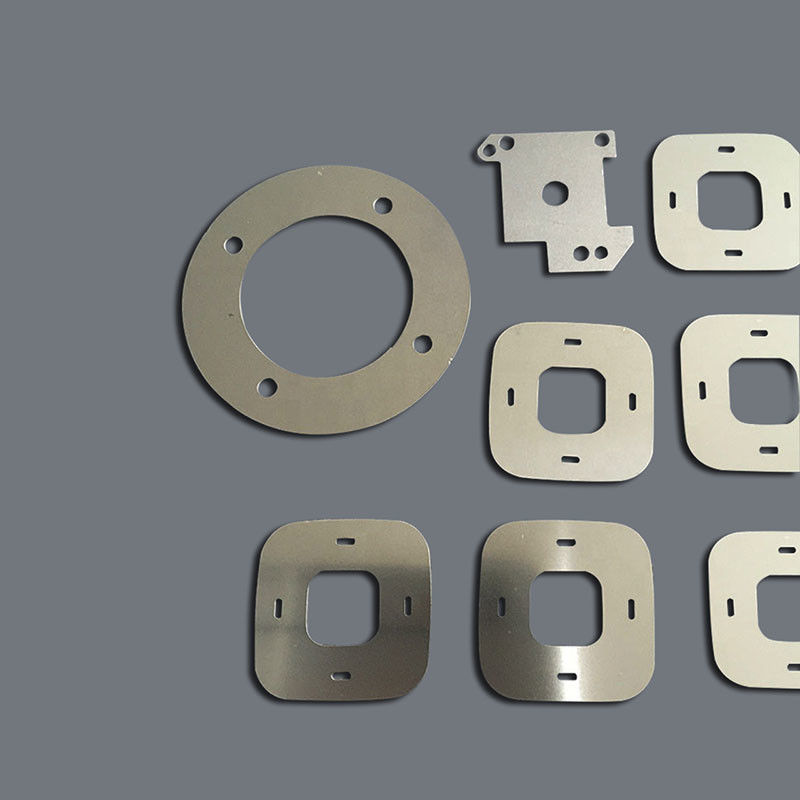

Acid Etching Metal High Precision Stainless Steel Shims & Gaskets 1
