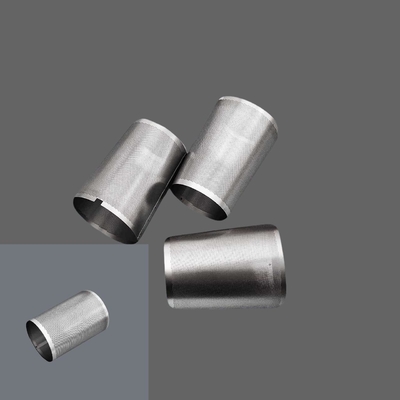

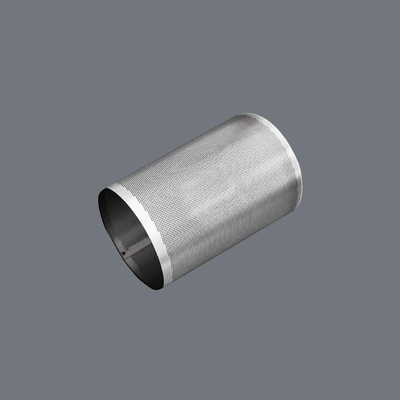

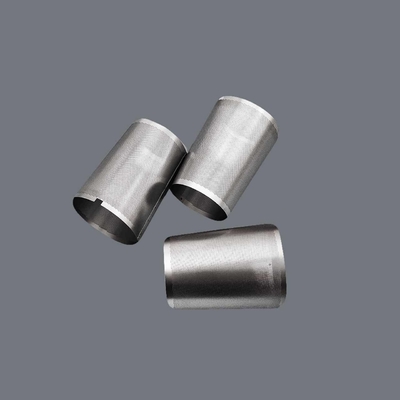

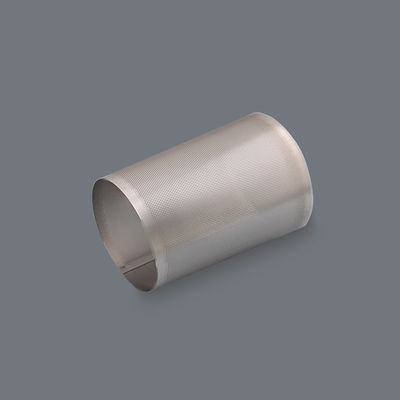

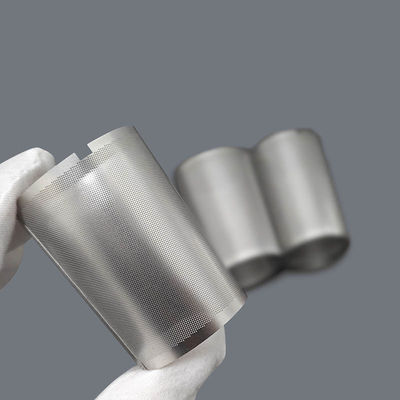

Excellent precision Acid Etching Medical filters Fiber Filters & Water filtration filter mesh

Using photo mask, the product pattern is copied on the metal material by the exposing machine. Then, etching it by liquid medicine. The distortion and burr will not be made by such chemical process, and the material could be kept flat. After the final washing process, the products will be very clean.

Half Etching
By exposing different patterns to the front and back side of the material, it is possible to etching single side of the metal material. The etching depth is about 2/3 of the material thickness.

Taper Etching
By etching different sizes from the front and back side of the material, a tapper hole could be made. The tapper shape could be adjusted.

No Burr and Distortion
Unlike machining or pressing, since etching is corroding the metal material by the chemical liquid, the burr or distortion will not be occurred during the process.

--- Carton with foam or according your demand

Packaging options

1. left in sheet
2. detached
3. bulk packed
4. box in foam layer
5. pe , boxes

Leadframe, electrode, metal mask, encoder, slit, speaker mesh, number plate, carrier/jig, mesh for printing, grid, discharge (the OA machine parts), design plate, EMI shielding mesh, film heater, parts for fuel cells or Lithium-ion rechargeable battery.

• Medical filters
• Juice filters
• Coffee filters
• Cranial mesh
• Engineering Filters
• Water filtration
• Speaker grilles

Stainless
SUS304 SUS301 SUS316 SUS430 SUS631, Others

Copper
Oxygen-free Copper, Tough Pitch Copper, Phosphor Bronze, Brass,Beryllium Copper, Other Copper material for lead frame.

Nickel Alloy
Alloy 42, Kovar, Permalloy, Nichrome, Invar Alloy, Inconel Alloy, Others

Special Metal
Molybdenum, Aluminum Alloy, Titanium Tungsten Steel, Gold, Silver, Others

Special Material
Glass, Clad Material, Glass Epoxy Board (+Metal Foil)
We also etching the material provided by customers.
Please contact us to know if the material is suitable for etching.

1. Low set-up costs and fast lead times make chemical etching a go-to process in batch sizes of one to multiple millions.
2. The tooling for chemical etching is digital, low-cost and can be modified quickly.
3. No heat or force is used when etching so mechanical properties remain unaltered and parts are free from stresses and burrs.
4. As component features are etched at the same time, part/feature complexity is not an issue.

Low-cost tooling and unlimited complexity for a range of filtration applications.

Xinhaisen offers an advanced chemical etching service for manufacturing filters, sieves and screens, outperforming traditional perforating techniques with greater speed, flexibility and cost-effectiveness.

Filters, screens and sieves play a crucial role within numerous engineering applications by separating solids from liquids or particles of different sizes. Stamping is the most widely used manufacturing process for perforating metal sheets due to its cost efficiency in large-scale production runs. However, it does have limitations, such as its limited flexibility, restricted customisation options for complex design, expensive tooling, constrained material choice and the potential for burrs and stresses.

1. High Precision and Consistency
2. Intricate Designs and Fine Detailing
3. Complex Part Manufacturing
4. Customisation and Prototyping
5. Material Integrity Preservation
6. Time and Cost Efficiency
7. Environmental Friendliness

1. Communications & Electronics
2. Aerospace
3. Renewable energy
4. Precision engineering
5. Automotive
6. Medical

1. What is Photo / Chemical etching?

   A process to manufacture metal components in thicknesses between 0.005mm to 2.5mm, in virtually all metals the capability of producing complex profiles using photographic digital tooling created from customer CAD files.

2. Why should we use chemical etching?

   Chemical etching is a fast efficient, cost-effective method for the manufacture of small precision metal parts, the ideal manufacturing process for both development prototype and production quantities. Parts produced by chemical etching are burr and stress-free, with the complexity of shape unlimited, plus the complete flexibility to change the design at any time.

3. What metals can you etch?

   We etch a wide range of metals from aluminium, beryllium copper, brass, copper, nickel silver, phosphor bronze, stainless steels, silver & developed special unique processes to etch technically challenging metals nickel superalloys, titanium, nitinol, molybdenum and many others.

4. Are you able to etch Titanium, we understand it is difficult to etch?

   All grades of titanium can be etched (alpha, beta & nitinol) through rigorous R&D we have developed our own unique (non HF) process to etch titanium alloys.

5. Are you able to etch Aluminium, we understand it is difficult to etch?

   All grades of aluminium can be etched (including clad) through rigorous R&D we have developed our unique process to etch aluminium up to 2.5mm thick.

6. What kind of electronic files can you accept?

   dwg, iges, dxf, gerber, step with fully dimensioned drawings or details of key features.

• You’re welcome, Xinhaisen deserve the good feedback from us because you help us a lot, keep up the good work.
• We have been looking for a long time for a supplier of Titanium etched parts, pleased to have found Xinhaisen.
• Just a quick thank you to you and your team for doing a good job for us, greatly appreciated thank you.
• Really appreciated your time, was very impressed with everything and everyone we met. Great result.
• Components look really good under the microscope with excellent uniformity on hole size” Excellent work.
• Received the plates you made, they look absolutely fabulous, the kind of plates we required.
• Due to the fact that the parts were so good and turned round so fast, we want to buy everything from Xinhaisen from now on.
• The etching process has really helped us to develop our concepts much quicker and at an extremely high level of accuracy.
• Once again I would like to thank you and your team for the parts you have just produced. They are by far the best pieces we have made so far.
• No problem at all with the service from Xinhaisen, it’s very easy to contact you.
• Many thanks for the parts. They look great quality and are just what we needed!
• Parts arrived, they look great, nice work, really got everyone talking.
