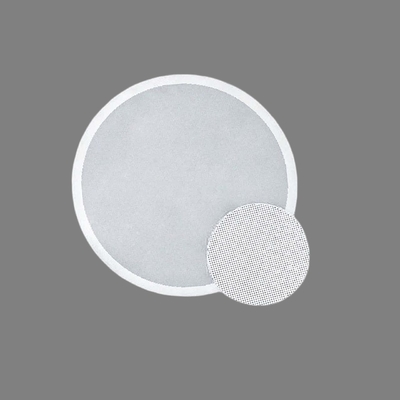

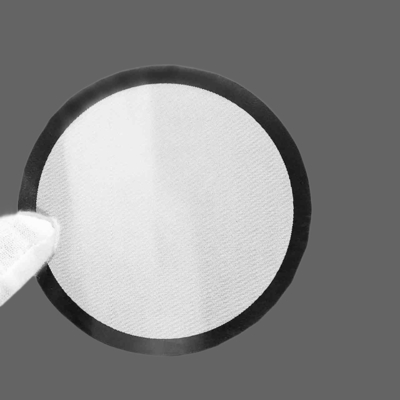

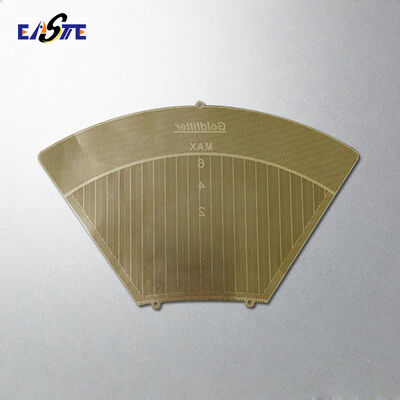

Free burrs Acid Etching Stainless Steel Fiber Filters &Coffee Filter Meshes

1. Precise Tooling

   The photo-tool artwork for photo chemical etching is free of charge here at Xinhaisen, as we like to invest in our customers future.

2. Risk-Free Design

   With the ability to produce rapid prototypes with short lead times, the complexity of your design is often not an issue. We will manufacture to your required drawings and to your exacting standards.

3. Right First Time

   The chemical etching process does not use mechanical force or heat, which means that the metals properties remain unchanged. The temper of material is also not altered and parts are completely burr-free and stress-free.

4. No Finishing Required

   Our metal etching process leaves no rough edges or burrs, therefore no additional deburring process is often required.

5. A variety of Thicknesses

   A huge variety of different material types and thicknesses can be photo etched, ranging from 0.0127mm through to 1.60mm thick.

6. Tolerances From ±0.025mm

   As your components features are all etched simultaneously, the complexity achievable can be impressive with profile tolerances achievable from ±0.025mm.

Low-cost tooling and unlimited complexity for a range of filtration applications.

Xinhaisen offers an advanced chemical etching service for manufacturing filters, sieves and screens, outperforming traditional perforating techniques with greater speed, flexibility and cost-effectiveness.

Filters, screens and sieves play a crucial role within numerous engineering applications by separating solids from liquids or particles of different sizes. Stamping is the most widely used manufacturing process for perforating metal sheets due to its cost efficiency in large-scale production runs. However, it does have limitations, such as its limited flexibility, restricted customisation options for complex design, expensive tooling, constrained material choice and the potential for burrs and stresses.

1. High Precision and Consistency
2. Intricate Designs and Fine Detailing
3. Complex Part Manufacturing
4. Customisation and Prototyping
5. Material Integrity Preservation
6. Time and Cost Efficiency
7. Environmental Friendliness

We maintain a comprehensive material stock comprising of standard and specialist grades, offering thicknesses that range from 0.010mm to 2.5mm

1. Communications & Electronics
2. Aerospace
3. Renewable energy
4. Precision engineering
5. Automotive
6. Medical

1. What is Photo / Chemical etching?

   A process to manufacture metal components in thicknesses between 0.005mm to 2.5mm, in virtually all metals the capability of producing complex profiles using photographic digital tooling created from customer CAD files.

2. Why should we use chemical etching?

   Chemical etching is a fast efficient, cost-effective method for the manufacture of small precision metal parts, the ideal manufacturing process for both development prototype and production quantities. Parts produced by chemical etching are burr and stress-free, with the complexity of shape unlimited, plus the complete flexibility to change the design at any time.

3. What metals can you etch?

   We etch a wide range of metals from aluminium, beryllium copper, brass, copper, nickel silver, phosphor bronze, stainless steels, silver & developed special unique processes to etch technically challenging metals nickel superalloys, titanium, nitinol, molybdenum and many others.

4. Are you able to etch Titanium, we understand it is difficult to etch?

   All grades of titanium can be etched (alpha, beta & nitinol) through rigorous R&D we have developed our own unique (non HF) process to etch titanium alloys.

5. Are you able to etch Aluminium, we understand it is difficult to etch?

   All grades of aluminium can be etched (including clad) through rigorous R&D we have developed our unique process to etch aluminium up to 2.5mm thick.

6. What kind of electronic files can you accept?

   dwg, iges, dxf, gerber, step with fully dimensioned drawings or details of key features.

7. CAD Data - How To Supply Your Data

   We Can Accept The Following File Formats:Please supply to our Sales team by email.

   DWG/IGES/DXF/Gerber/Step or Fully Dimensioned Drawing

8. How To Supply Your Files

   Please ensure all lines are continuous (no breaks) and all dimensions on nominal.

   For QA inspection measurement we require a drawing with critical features identified.

   Please provide a scale line on data.

   Please clearly identify any ½ etched features and which side of part, detail is required.
