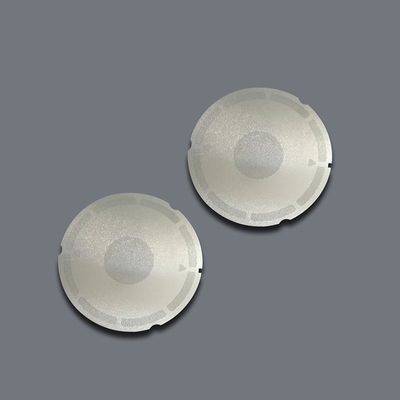

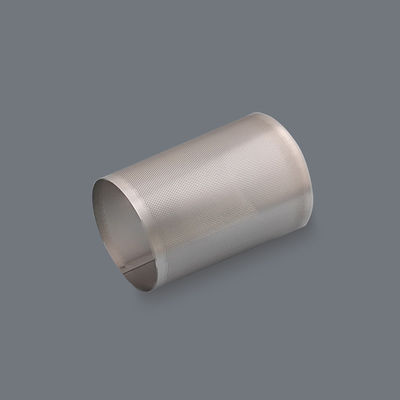

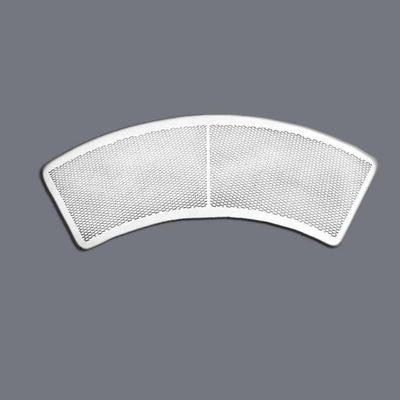

Precision Photo Etched Metal 0.1mm 304 Stainless Steel Mesh Filters and Screens for Filtration

Precision Photo Etched Metal 0.1mm 304 Stainless Steel Mesh Filters and Screens for Filtration

Brand Name:	XHS/ Customized
Model Number:	XHS/ Customized
MOQ:	10
Price:	80-100USD
Payment Terms:	T/T,Western Union
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO9001 ISO14001

Durability:

High

Complexity:

High

Tolerance:

±0.005mm

Thickness:

0.02mm-1.5mm

Lead Time:

2-3 Weeks

Size:

Customized

Precision:

High

Cost:

Low

Packaging Details:

PE bag, Carton

Supply Ability:

10000-100000PCS / week

Highlight:

0.1mm stainless steel photo etched mesh

304 stainless steel chemical machining filters

photo etched screens for industrial applications

Product Description

Precision Photo Etched Metal 0.1mm 304 Stainless Steel Mesh Filters and Screens for Filtration

Xinhaisen manufacture photo etched components from various metals suitable for Aerospace, Filtration, Automotive, Precision Engineering, and many other industries. Our core competitiveness lies in the precision machining of metal components, such as bipolar plates, meshes, filters & screens, electronic components, and other products with high precision requirements.

Types of materials we etch

Stainless steel, Copper, Titanium, Nickel, Aluminum and more custom alloys are available for selection.

Xinhaisen's Etching process capability:

Technology	Process capability
Minimum single-piece size	1mm*1mm
Maximum single-piece size	1800*650mm
Processing metal material thickness	0.02mm-3.0mm
Thickness tolerance	+/-0.005mm
Minimum hole opening precision	Φ0.02mm
The finest lines	0.01mm
General shape and dimension tolerance	+/-0.008mm
Line size tolerance	+/-0.005mm
Minimum depth	0.01mm
Depth accuracy tolerance	+/-0.005mm

We have advanced equipment, leading technology, unique formula of medicine, and a group of energetic, high-spirited and experienced teams.

Owned Equipments:

Automatic cutting machine: 2 sets
Cleaning line: 3 sets
Exposure machine: 5 sets, the maximum exposure size is 1.8 meters
Etching machine: 6 sets, accuracy +/-0.01mm
Demolding line: 2 sets
Measuring equipment: 4 fully automatic 2.5-dimensional, 1 Keyence one-button measuring machine

Precision Photo Etched Metal 0.1mm 304 Stainless Steel Mesh Filters and Screens for Filtration 6

What's Photo Chemical Machining?

Photo Chemical Machining: also known as photochemical etching, refers to the process of exposing the metal part of the protective film in the area to be etched after film plate making, exposure and development, and contacting the chemical solution during etching to achieve the effect of dissolution and corrosion, forming a concave-convex or hollow-out effect; etching technology belongs to the field of photosensitive chemical technology, and is a method of using photolithography to process thin precision metal products.

Photo Chemical Machining Process:

Precision Photo Etched Metal 0.1mm 304 Stainless Steel Mesh Filters and Screens for Filtration 9

Benifits of Metal Chemical Etching


Unlimited Complex	Smallest Opening to 0.02mm	Burr-Free & Stress-Free	Prototype to High Volume Production

How to Custom Metal Components from Xinhaisen?

1. Send Your Design Provide your drawing file (DXF, DWG, STP, PDF) with dimensions, material type, and thickness.

2. Get a Quote We’ll evaluate your design and send you a quotation based on quantity, material, and complexity.

3. Confirm & Start Production Once the order is confirmed, we’ll prepare phototools and begin the etching process.

4. Quality Inspection All parts go through strict quality checks to ensure accuracy and consistency.

5. Packaging & Delivery Your parts will be carefully packaged and shipped to your address on time.

Ready to discuss your Metal Filter Screens design?
