Custom Photo Etched Ultra Thin 0.02mm to 0.05mm Metal Filter Screens For Precision Filtration

Custom Photo Etched Ultra Thin 0.02mm to 0.05mm Metal Filter Screens For Precision Filtration

Brand Name:	XHS/ Customized
Model Number:	XHS/ Customized
MOQ:	10
Price:	80-100USD
Payment Terms:	T/T,Western Union
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO9001 ISO14001

Durability:

High

Complexity:

High

Tolerance:

±0.005mm

Thickness:

0.02mm-1.5mm

Lead Time:

2-3 Weeks

Size:

Customized

Precision:

High

Cost:

Low

Packaging Details:

PE bag, Carton

Supply Ability:

10000-100000PCS / week

Highlight:

ultra thin metal filter screens

precision filtration metal screens

custom etched metal filter screens

Product Description

Custom Photo Etched Ultra Thin 0.03mm 0.05mm Metal Filter Screens For Precision Filtration

Xinhaisen provides chemical etching solutions for producing metal filters, sieves, and screens, delivering faster turnaround, greater design flexibility, and more cost-efficient results compared to conventional perforation methods.

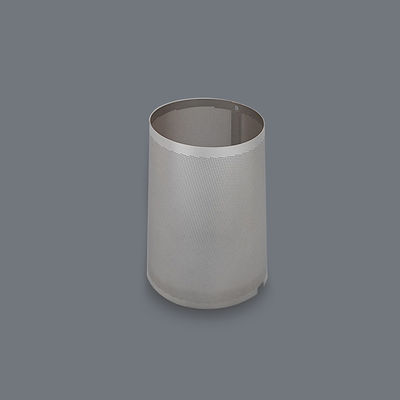

Custom Photo Etched Ultra Thin 0.02mm to 0.05mm Metal Filter Screens For Precision Filtration 0

Metal Filter Screens can be produced produced using methods such as stamping or laser cutting, but these techniques often fall short when handling intricate patterns or achieving extreme precision. Chemical etching, however, excels in both areas-enabling the creation of highly complex designs with exceptional accuracy, while maintaining a stress-free, burr-free surface.

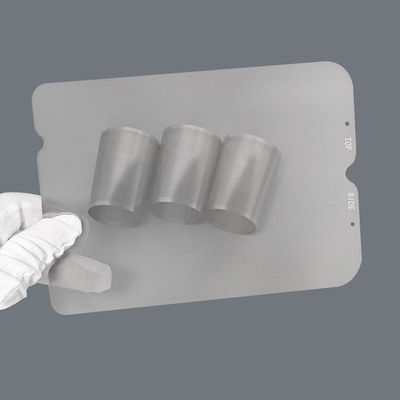

Custom Photo Etched Ultra Thin 0.02mm to 0.05mm Metal Filter Screens For Precision Filtration 1

Specifications of Photo Etched Metal Filter Screens

Material:	SUS 304, SUS 316, Copper, Nickel, Aluminum or custom alloys
Thickness Range:	0.02mm – 3mm
Hole Size:	As small as 25 microns
Pattern Tolerance:	±0.01 mm
Mesh Types:	Circular, rectangular, multi-layer, or custom shapes
Surface Finish:	Clean, burr-free, optional passivation

Photochmical machinging is a precision substractive process that removes materials from metal sheets through controller chemical reactions. Using affordable digital tooling and machining all mesh openings in a single operation, it enables the creation of components with virtually umlimited complexity, structures, and geometries. This method not only cuts costs and shortens lead time, but also allows for quick and efforless design changes.

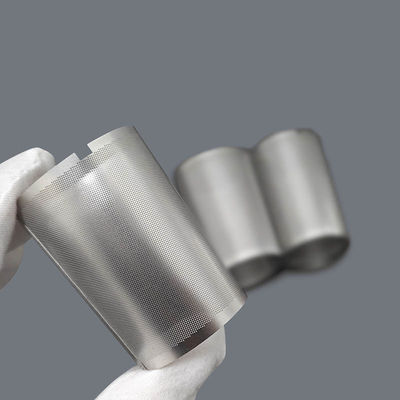

Custom Photo Etched Ultra Thin 0.02mm to 0.05mm Metal Filter Screens For Precision Filtration 2

Etched metal filter screens can be precision-machined to achieve a minimum aperture precision of 0.02 mm and a minimum wire diameter of 0.01 mm. The thickness range that can be processed is from 0.02 mm to 3 mm. Our chemical etching service ensures that the metal filter screens produced is completely burr-free and stress-free.

Benifits of Photo Etched Metal Filter Screens


Unlimited Complex	Smallest Opening to 0.02mm	Burr-Free & Stress-Free	Prototype to High Volume Production

How to Custom Metal Filter Screens from Xinhaisen?

1. Send Your Design Provide your drawing file (DXF, DWG, STP, PDF) with dimensions, material type, and thickness.

2. Get a Quote We’ll evaluate your design and send you a quotation based on quantity, material, and complexity.

3. Confirm & Start Production Once the order is confirmed, we’ll prepare phototools and begin the etching process.

4. Quality Inspection All parts go through strict quality checks to ensure accuracy and consistency.

5. Packaging & Delivery Your parts will be carefully packaged and shipped to your address on time.

Ready to discuss your Photo Etched Metal Filter Screens design?
