0.03mm Micro Holes Precision Stainless Steel Etched Smoke Detector

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	20
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Stainless Steel

Hole Size:

0.2mm

Surface Treatment:

Electrolytic Polishing

Thickness:

0.5mm

Durability:

High

Customization:

Available

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

Stainless Steel smoke detector

Etched smoke detector

Precision fire detector

Product Description

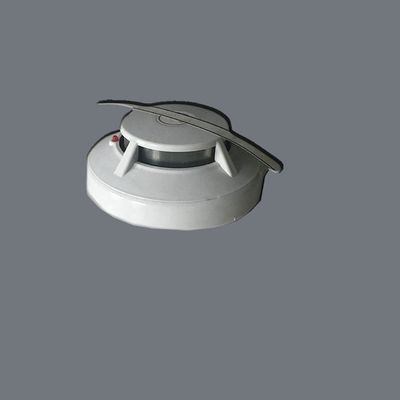

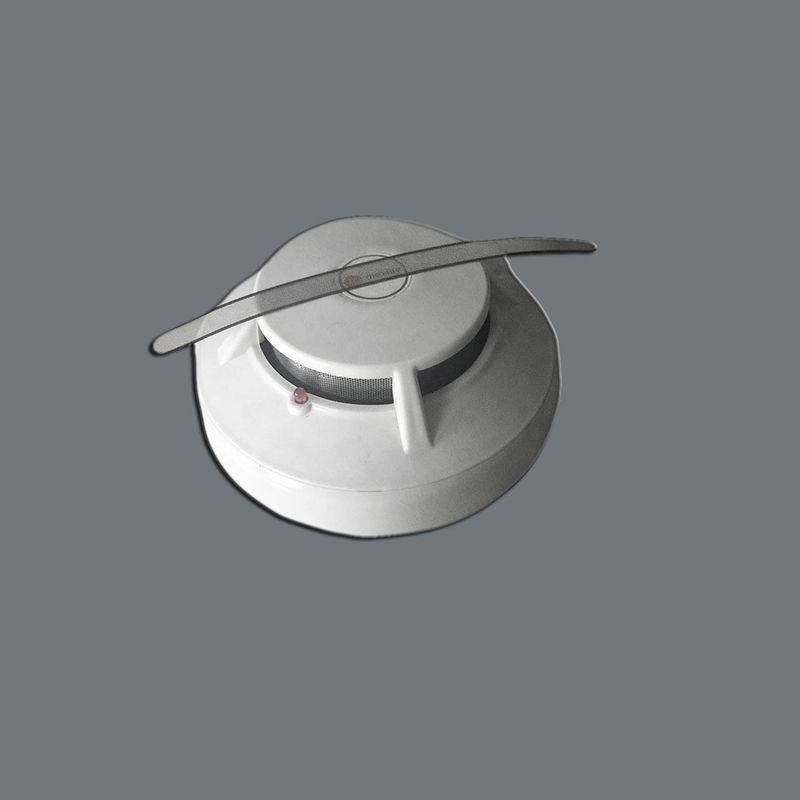

0.03mm Micro-Holes Precision Stainless Steel Etched Smoke Detector

Smoke Detector Overview

Xinhsen Technology manufactures mission-critical etched metal components for smoke detectors using advanced photochemical machining. Our precision-etched parts enable reliable smoke detection through:

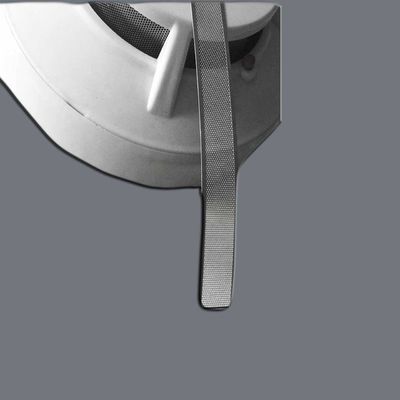

✔ Ultra-fine mesh filters (0.03mm holes) for particulate capture
✔ Corrosion-resistant chambers for long-term stability
✔ EMI shielding enclosures with vent patterns

Key Components & Features

Component	Function	Etching Advantage
Detection Chamber	Houses optical sensors	Precise light baffle patterns
Air Intake Mesh	Filters large particles	0.05mm holes, 60% open area
EMI Shield	Reduces interference	Custom Faraday cage designs
Mounting Bracket	Secures internal components	Stress-free thin metal parts

Smoke Detector Specifications

Material Options	304/316L SS, Nickel 200, Aluminum 5052
Thickness Range	0.05mm - 1.0mm (±0.02mm)
Minimum Hole Size	0.03mm diameter (±0.005mm)
Open Area Ratio	30%-80% (smoke flow optimized)
Surface Finish	Matte (Ra 0.8μm) or polished (Ra 0.4μm)

Quality Assurance

Material Certification: EN 10204 3.1 with full traceability
100% Automated Inspection: Vision systems verify hole dimensions
Environmental Testing:
- 85°C/85% RH aging (1000hrs)
- IP65 dust/water resistance validation
Compliance:
- UL 217/UL 268 (smoke detectors)
- EN 14604 (European standard)
- RoHS/REACH compliant
