Metal Etching Services For Custom Precision 0.01-1.5mm Stainless Steel Shims
Product Details
| Materials: | Stainless Steel Or Customized | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| MOQ: | As Low As 100pcs | Sample: | Available |
| Size: | Customized | ||
| Highlight |
1.5mm photo etching services,Precision photo etching services,0.01mm custom precision shims |
||
Product Description
Metal Etching Services For Custom Precision 0.02-1.0mm Stainless Steel Shims
| Our Precision Photo Etching Services offer a reliable and cost-effective solution for producing custom metal parts and gaskets with high accuracy. Using advanced chemical etching techniques, we create intricate designs and tight tolerances without mechanical stress or heat distortion. Whether you're in aerospace, electronics, automotive, or medical industries, our metal etching capabilities ensure consistency, quality, and quick turnaround. | |
Specifications of Custom Stainless Steel Shims:

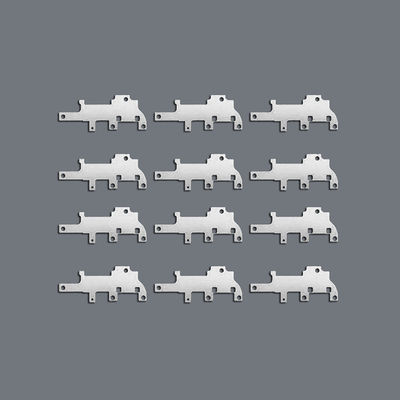

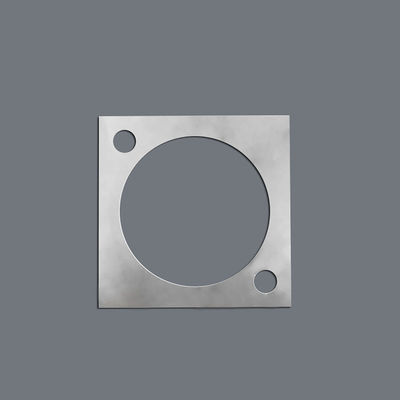

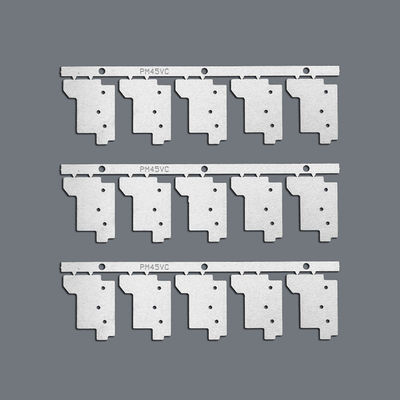

| Item | Etching metal shims & gaskets |
| Material | Stainless Steel, or Copper, Brass, Nickel, Aluminum, and more |
| Thickness |
0.01mm to 1.5mm |
| Tolerance | ±0.01mm (material & design dependent) |
| Max Sheet Size | Up to 600mm x 800mm |
| Process | Chemical etching /Photo etching |
| Surface Finish | Matte, bright, or customized post-processing (anodizing, plating) |
| Feature | Precision, Burr free, without connections |
Features of Custom Stainless Steel Shims:
-
High Precision: Achieve fine detail and tight tolerances up to ±0.01mm
-
Stress-Free Process: No heat or mechanical force—maintains material integrity
-
Design Flexibility: Easily adapt to complex geometries or thin-walled components
-
Fast Prototyping: Rapid turnaround for samples and small-batch production
-
Scalable Manufacturing: Ideal for both low- and high-volume production runs
Applications of Stainless Steel Shims
-
Custom Gaskets & Washers – Precision sealing components for industrial use
-
Metal Shims & Spacers – Accurate alignment for mechanical assemblies
-
EMI/RFI Shielding – Intricate patterns for electronics and enclosures
-
Decorative Panels & Labels – Branding and aesthetic customization
-
Micro Components – Miniaturized parts for medical and optical devices
The Benefits of Chemical Etching:
-
No Burrs or Deformation: Edges are clean and precise, ideal for functional parts
-
Cost-Efficient Tooling: Affordable and fast to modify for design changes
-
Consistent Quality: Repeatable accuracy across production batches
-
Compatible with Thin Metals: Perfect for fragile or intricate metal parts
-
Environmentally Friendly: Waste chemicals are treated and recycled responsibly
How to Metal Etching Stainless Steel Shims?
-
Design Layout – Start with your CAD drawing or let our engineers assist
-
Photo Tooling – A photoresist layer is applied to your chosen metal
-
Etching Process – Unmasked areas are etched away using a chemical solution
-
Cleaning & Inspection – Final parts are cleaned, deburred, and quality-checked
-
Delivery – Finished metal shims are packaged and shipped to your door
