304 316L Stainless Steel Photochemical Etching Etched Filter Mesh Manufacturer
Product Details
| Materials: | Stainless Steel (304, 316), Nickel, Copper, Brass, Titanium | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Surface Finish: | Natural Metal Or Electropolished | Other Processing: | Plating, Stamping, Laser Cutting |
| Highlight |
High Temperature Resistant Etched Filter Mesh,Stainless Steel Etched Filter Mesh,Custom metal filter mesh |
||
Product Description

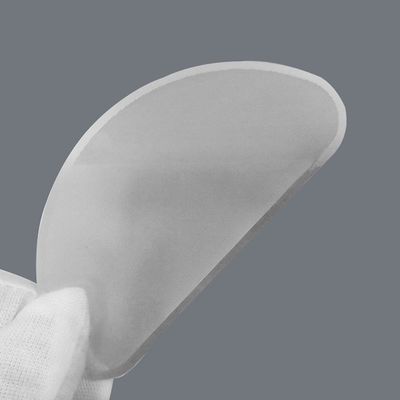

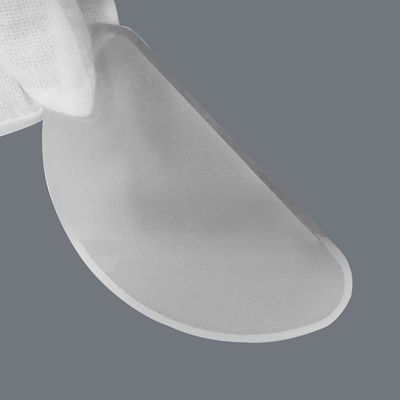

304 316L Stainless Steel Photochemical Etching Etched Filter Mesh Manufacturer
Brief Introduction of Etched Filter Mesh:
| The High Precision Metal Chemically Etched Filter Mesh is an advanced filtration solution crafted for demanding industrial uses. Utilizing state-of-the-art chemical etching methods, it delivers micron-level precision, smooth edges, and exceptional filtration performance. Perfect for tasks requiring accuracy, corrosion resistance, and extended service life. |
Specifications of Etched Filter Mesh:
Features of Etched Filter Mesh:
- Micron-Level Precision: Achieves exact tolerances with exceptional accuracy.
- Clean, Burr-Free Cuts: Chemical etching avoids mechanical stress and deformation.
- Fully Customizable Designs: Shapes and patterns adapted to your specific needs.
- Resistant to Corrosion & Heat: Performs reliably in extreme conditions.
- Reliable Filtration Efficiency: Delivers consistent and even flow control.
 |
|
|
|
|
|
Applications of Etched Filter Mesh:
- Food & Beverage Processing – Sanitary filtration for fluids
- Electronic Components – EMI shielding and acoustic panels
- Automotive Systems – Filters for fuel, oil, and air systems
- Industrial Applications – Filtration for liquids and gaseous media
- Medical Devices – Sterile-grade filters and precision parts
- Aerospace & Defense – Precision systems for fluid regulation
How is Stainless Steel Etched Filter Mesh?
-
Designing: CAD drawing of the mesh pattern
-
Photolithography: Applying photoresist to the metal surface
-
UV Exposure: Using a photomask to expose specific areas
-
Etching: Chemical solution removes unprotected metal areas
-
Cleaning & Inspection: Final mesh is cleaned and quality-checked
This non-contact process avoids mechanical stress, ensuring high accuracy and repeatability.
The Benefits of Chemical Etching:
-
No Burrs or Sharp Edges – Ensures safety and cleanliness
-
High Reproducibility – Perfect for mass production
-
Flexible Design Options – Complex geometries possible
-
Minimal Material Deformation – Ideal for thin metal sheets
-
Eco-Friendly Process – Less waste compared to mechanical cutting
How to Custom Filter Mesh from Us?
-
Send Your Requirements: Mesh size, shape, material, quantity
-
Get a Free Design Consultation: Our engineers will assist with DFM (design for manufacturing)
-
Rapid Prototyping: Fast sampling available for approval
-
Mass Production & Delivery: ISO-certified, quality-guaranteed production
-
After-Sales Support: Reliable technical and customer service
Contact us today to get your custom etched filter mesh quote!
