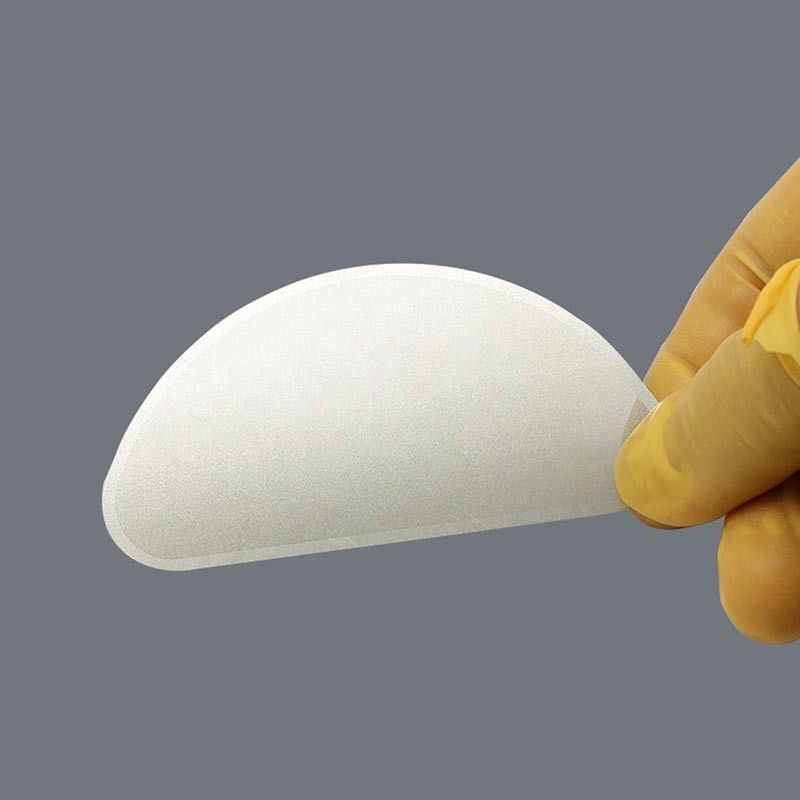

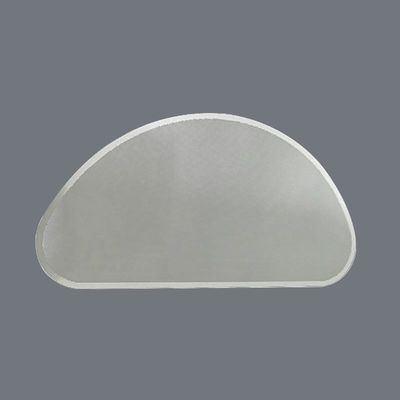

High Precision Chemical Etching Metal Mesh For Industrial Filtration Systems

High Precision Metal Chemical Etched Filter Mesh For Industrial Filtration Systems

Brief Introduction of Chemical Etched Filter Mesh:

High Precision Metal Chemical Etched Filter Mesh is a specialized filtration component designed for high-performance industrial applications. Manufactured through advanced chemical etching technology, this mesh ensures micron-level accuracy, clean edges, and superior filtration efficiency. It is ideal for applications that demand precision, corrosion resistance, and long-lasting durability.

Specifications of Stainless Steel Filter Meshes:

Features of Chemical Etched Filter Mesh:

• Ultra-High Precision: Micron-level accuracy with minimal tolerance variations.

• Smooth & Burr-Free Edges: Thanks to chemical etching, no mechanical stress or distortion.

• Customizable Patterns & Shapes: Easily tailored to fit your unique requirements.

• Corrosion & Heat Resistant: Ideal for harsh environments.

• Consistent Filtration Performance: Ensures stable and uniform flow rates.

Applications of Chemical Etched Filter Mesh:

• Industrial Filtration Systems – Liquids and gases

• Medical Equipment – Sterile filters and components

• Electronics – EMI shielding, speaker grills

• Automotive – Fuel, oil, and air filtration

• Food & Beverage – Hygienic filters for liquid processing

• Aerospace & Defense – High-precision fluid control systems

How is Etched Filter Mesh Made?

1. Designing: CAD drawing of the mesh pattern

2. Photolithography: Applying photoresist to the metal surface

3. UV Exposure: Using a photomask to expose specific areas

4. Etching: Chemical solution removes unprotected metal areas

5. Cleaning & Inspection: Final mesh is cleaned and quality-checked

This non-contact process avoids mechanical stress, ensuring high accuracy and repeatability.

The Benefits of Chemical Etching

• No Burrs or Sharp Edges – Ensures safety and cleanliness

• High Reproducibility – Perfect for mass production

• Flexible Design Options – Complex geometries possible

• Minimal Material Deformation – Ideal for thin metal sheets

• Eco-Friendly Process – Less waste compared to mechanical cutting

How to Custom Filter Mesh from Us

1. Send Your Requirements: Mesh size, shape, material, quantity

2. Get a Free Design Consultation: Our engineers will assist with DFM (design for manufacturing)

3. Rapid Prototyping: Fast sampling available for approval

4. Mass Production & Delivery: ISO-certified, quality-guaranteed production

5. After-Sales Support: Reliable technical and customer service

Contact us today to get your custom etched filter mesh quote!
