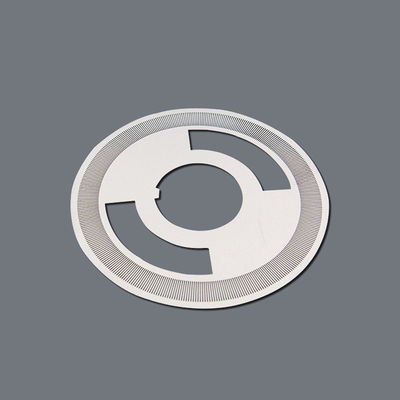

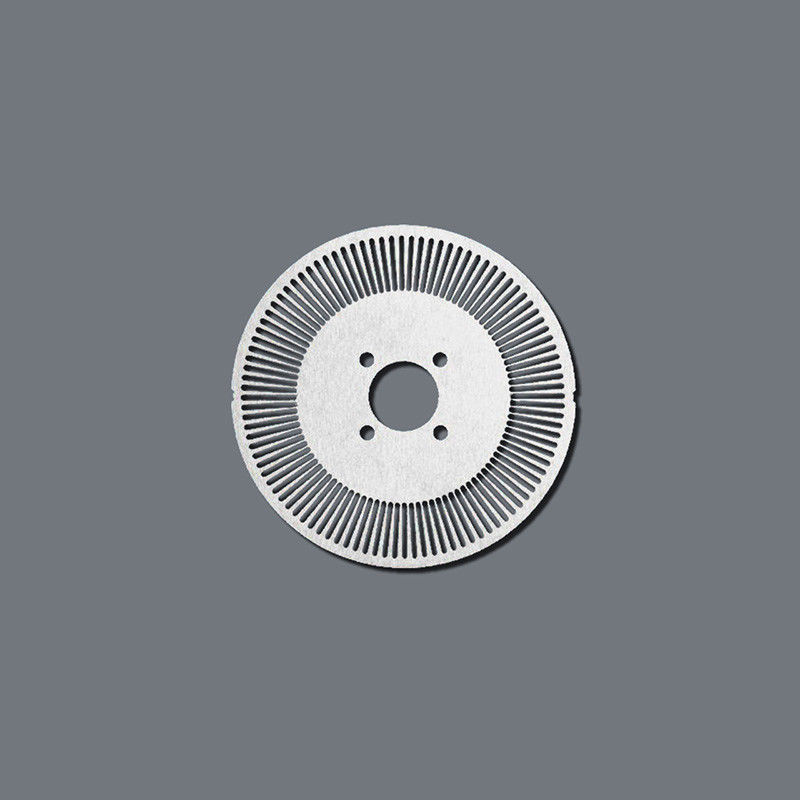

Stainless Steel Encoder Disc With Chemical Etching Technology

Name: Stainless Steel Encoder Disc With Chemical Etching Technology
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Custom
Price: 75.00 USD
Availability: InStock

Brand Name:	XHS/ Customized
Model Number:	Custom
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001

Materials:

Stainless Steel Or Customized

Thickness:

0.02mm - 1.5mm

Tolerance:

+/- 0.005mm

Production Process:

Photo Chemical Etching, Plating, Stamping, Laser Cutting

Packaging Details:

PE bags and Cartons / Customized

Supply Ability:

10000-100000PCS / week

Highlight:

Stainless Steel encoder disc

Chemical Etching encoder disc

Chemical Etching rotary encoder disk

Product Description

Durable Stainless Steel Encoder Discs With Chemical Etching Technology

Xinhaisen fabricates precision metal encoder discs via photochemical etching, converting customer designs into custom components for optical, capacitive, magnetic, and reflective encoder systems. The process achieves ±0.01mm tolerances, etching intricate patterns on stainless steel, titanium, or specialty alloys. Ideal for robotics and automation, these discs deliver thermal stability, corrosion resistance, and durability in harsh environments, balancing performance with cost-efficiency.

Specifications of Stainless Steel Encoder Discs:

Material Capabilities	Metal like Stainless Steel, Copper etc.
Thickness	0.03 mm to 1 mm
Product Dimension	600*600 mm or Customized
Smallest open hole	D= 0.1mm when Thickness range from 0.03mm to 0.05mm
Centre to Centre for holes	1.5*Thickness
Product precision	± 0.01mm (common difference). It’s generally 20% of material thickness
Surface treatment for choice	Silver, Gold, Tin Plated, Matt Finish, Paint

How Does Chemical Etching Work:

Stainless Steel Encoder Disc With Chemical Etching Technology 0

Meterial Selection→Material Cutting→Cleaning→Printing→Drying→Exposure→Developing→Etching→Stripping→Data Inspection→Packing

Benifits of Chemical Etching Stainless Steel Encoder Discs:

1. High Accuracy:
Achieve intricate and detailed digital designs that are not possible with traditional machining.
2. Flexibility:
Easily accommodate design changes and modifications without the need for expensive tooling.
3. Material Efficiency:
Save money by reducing waste and optimizing materials.
4. No Mechanical Stress:
Maintain material integrity by avoiding mechanical deformation during etching.
5. Scalability:
Efficiently scale from prototype to high-volume production.
6. Cost effective:
Eliminates the need for expensive and time-consuming tooling
7. Cost efficient:
Part complexity does not affect the production time
8. Rapid prototyping:
Produce different designs at the same time without added effort.

If you have project requirements, please send us the drawings and we will contact you as soon as possible to provide a professional quotation.
