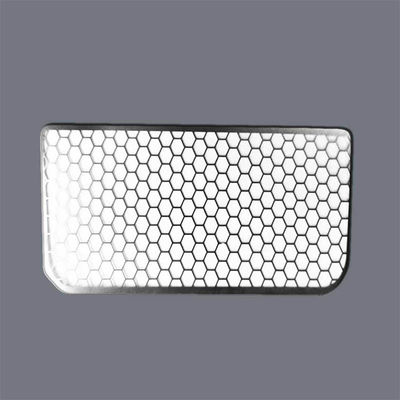

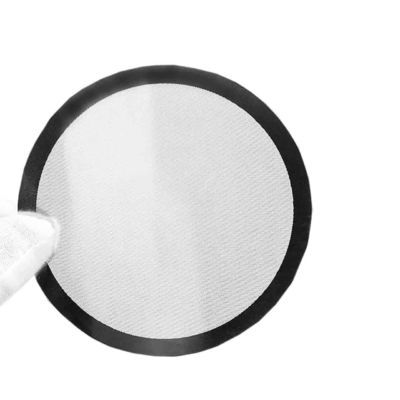

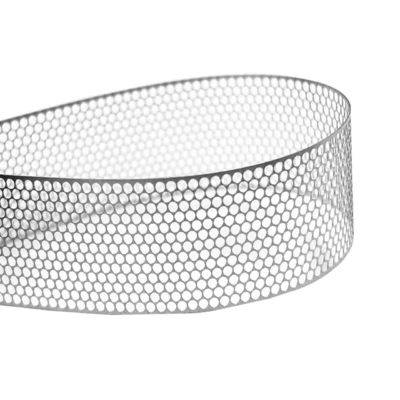

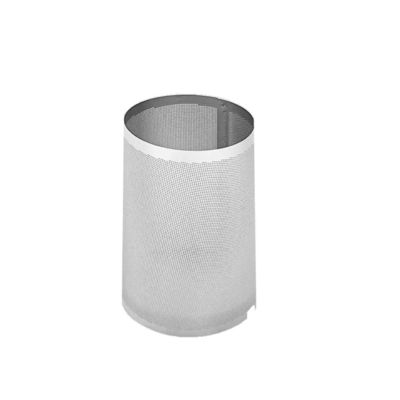

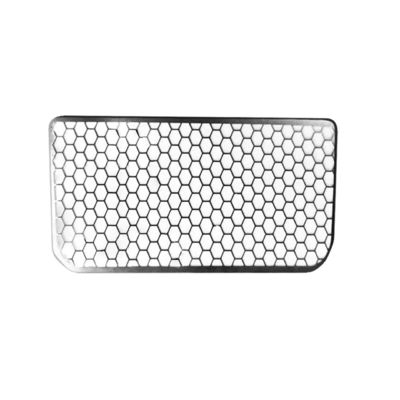

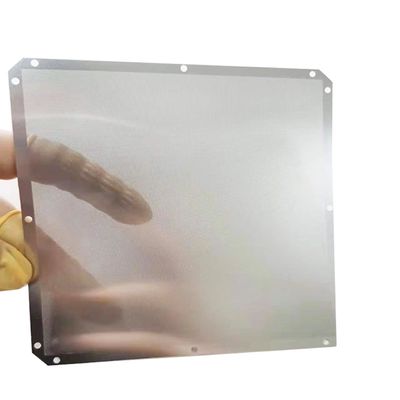

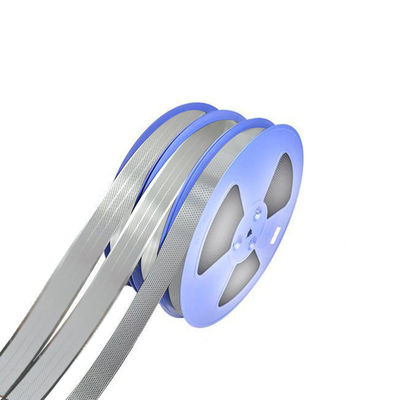

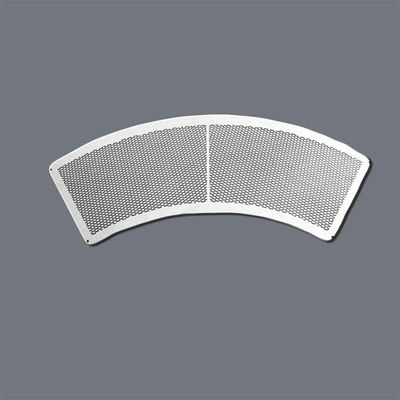

Custom Chemical Etched Filter Mesh 0.02-1.5mm Thickness For Filtration Systems

Custom Chemical Etched Filter Mesh 0.02-1.5mm Thickness for  Filtration Systems

Website: www.xinhsen.cn

Product Overview

Xinhsen Technology specializes in high-precision metal etching components for industries requiring micron-level accuracy, including aerospace, medical devices, electronics, and automotive sectors. Our chemically etched parts—such as speaker meshes, optical grilles, masking sheets, and filtration screens—are crafted with ±0.03mm uniformity and 0.015mm minimum line width, ensuring superior performance even in demanding environments.

Key Advantages

Ultra-Precision: Micro-hole diameters down to 0.03mm, thickness range 0.02–1.5mm.

Rapid Turnaround: Agile production for emergency/large-volume orders.

Material Versatility: Stainless steel, copper, aluminum, titanium, and specialty alloys.

Cost-Effective: No hard tooling required; ideal for prototypes and mass production.

Technical Specifications

Material Thickness 0.02–1.5mm

Tolerance ±0.03mm

Minimum Hole Size 0.03mm

Minimum Line Width 0.015mm

Materials SS 304/316, Cu, Al, Ti, Ni alloys

Surface Finish Deburred, passivated, or custom-coated

Packaging & Handling Instructions

Anti-Static Packaging: Critical for electronic components (e.g., EMI shielding grids).

Vacuum-Sealed Layers: Prevents oxidation of thin foils (<0.1mm).

Labeling: Each batch includes material certifications and laser-etched LOT numbers.

Handling: Use gloves to avoid fingerprints on optical/medical parts.

Industry Applications

1. Electronics & Telecom

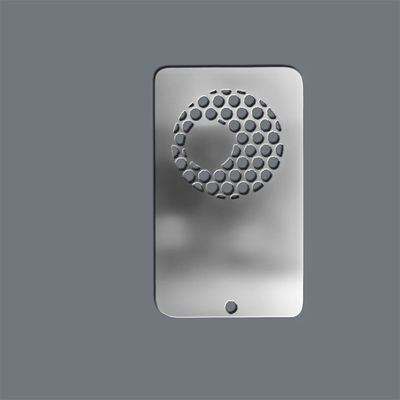

iPhone speaker meshes: Noise reduction with 0.05mm micro-perforations.

5G antenna shields: Lightweight aluminum etching for heat dissipation.

2. Medical & Aerospace

Surgical tool components: Burr-free edges for implantable devices.

Fuel cell filters: Acid-resistant titanium etching.

3. Automotive & Home Appliances

EV battery cooling fins: High-conductivity copper designs.

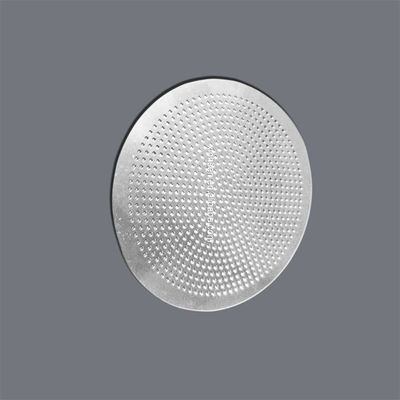

Coffee machine mesh screens: FDA-compliant stainless steel.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2012,sell to Domestic Market(50.00%),Central America(10.00%),North America(10.00%),Eastern Europe(10.00%),South America(10.00%),Western Europe(5.00%),Southern Europe(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Photo chemical etching,Micro-channel plate etching,Precision filter mesh,metal encoder disk,Precision metal shims

4. why should you buy from us not from other suppliers?

Xinhaisen is established to specialized in the production of high-quality, finite and micro-size photo chemical etching metal products.Our seventy professional staff specialized in research and development , manufacturing and marketing service.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;

Accepted Payment Type: T/T,Paypal,Western Union,Cash;

Language Spoken:English,Chinese

Why Choose Xinhsen?

One-Stop Service: From prototyping to ISO-certified mass production.

Sustainability: Closed-loop chemical recycling and ROHS compliance.

How to customize the product from us.

1.Please send us your design.

We accept the following file formats:

DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator

2.Samples making lead time:3-10days

Looking forward to your cooperation!

Contact: sunny@xinhsen.com | WhatsApp: +86 15767034065
