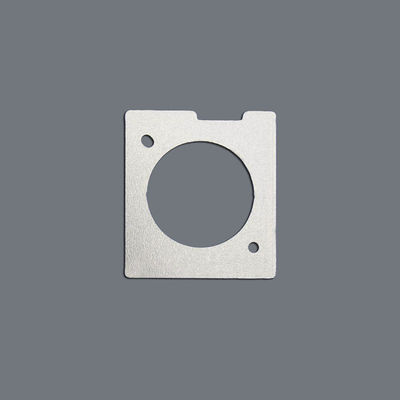

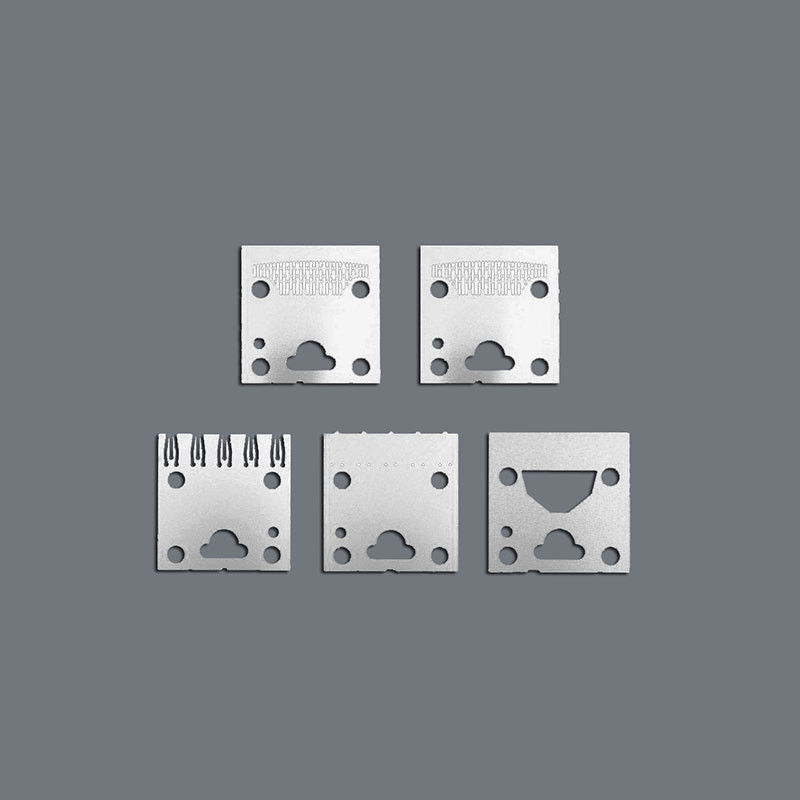

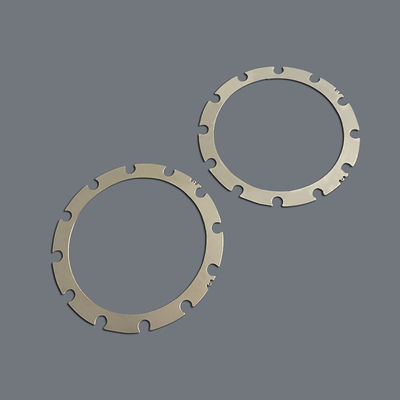

Professional Metal Etching High Precision Stainless Steel, Copper, Aluminum Shims for Machinery Parts
Product Details
| Materials: | Stainless Steel Or Customized | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
Corrosion Resistant stainless steel gasket,High Precision stainless steel gasket,Chemical Etched ss gasket |
||
Product Description
Professional Metal Etching High Precision Stainless Steel, Copper, Aluminum Shims for Machinery Parts
| Shims&Gasket are generally placed into an empty space to provide support and / or balance, the chemical etching process offers high precision parts, that have a burr free finish and has low cost tooling. Photo chemical etching shims and spacers are made from various grades of steel, traditionally mild steel, carbon steel and stainless steel. |
|
Specifications of Metal Etching Metal Shims:
| Item | Etching metal shim & gasket |
| Material | Eco-friendly copper, stainless steel, carbon steel, etc. |
| Thickness | 0.03-1.5mm, it is according to your request |
| Tolerance | +/-0.01mm (according to your products) |
| Size & shape | As you design |
| Process | Chemical etching /Photo etching |
| Feature | Precision, Burr free, without connections |
Quick Details:
Materials: Stainless Steel, Brass, Aluminum or Carbon Steel.
Applications: Machinery Parts
What’re the advantages of Metal Etching Metal Shims?
|
Manufacturing metal washer shims using the photochemical etching process offers several distinct advantages, such as high precision and accuracy, uniform thickness and complex geometries, material efficiency, design flexibility, high-quality surface finish, smooth surface and no mechanical damage, high production efficiency, batch processing and fast turnaround, cost-effectiveness, no tooling costs and versatility. |
Why use photo etching?
Photo etching is a very cost-effective alternative of stamping, laser cutting, punching or CNC machining when the thickness
of metal parts is between 0.02mm to 1.5mm.
- Cost-effective: no expensive molding tool required.
- Fast sampling: sample within 2-3 days, not weeks.
- High precision, micro and complex.
- No additional cost for complexity.
- Burrs and stress free, no sharp edge.
- Mass production within days, not month.
- Various material options: stainless steel, copper, brass, aluminum, alloys, titanium and so on.
- No effect on material temper or magnetism.
How to etching metal parts from us?
1.Please send us your design.
We accept the following file formats: DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator
2.Samples making lead time:3-10days
3.Express:By DHL,Fedex,TNT,around 3-7days.
