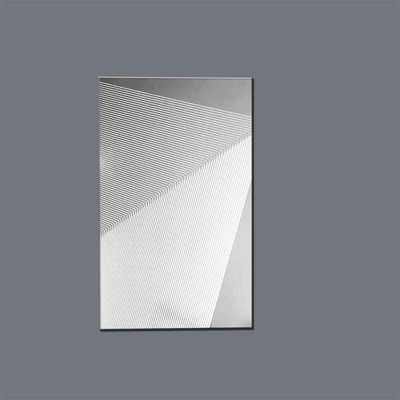

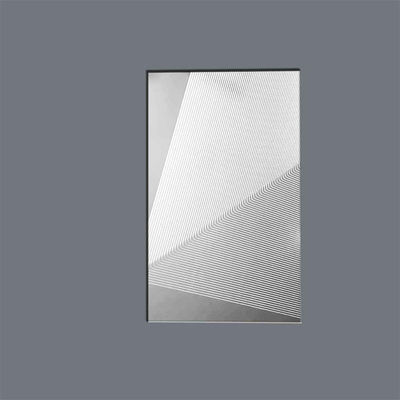

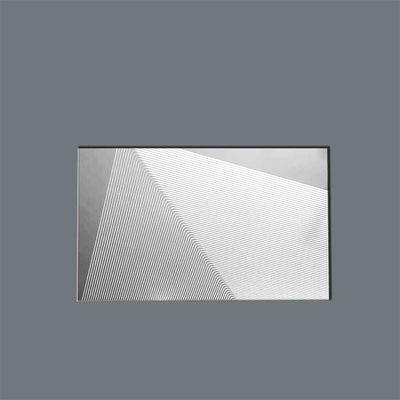

Ultra Thin Printed Circuit Heat Exchanger 0.03mm Uniformity For Automotive Energy

Ultra-Thin Metal Plate Heat Exchanger  0.03mm Uniformity for Automotive/Energy

Overview
Xinhsen Technology specializes in manufacturing high-performance etched metal plate heat exchangers through advanced chemical etching technology. Our precision-etched plates enable superior thermal transfer efficiency with optimized flow channels for various industrial applications.

Key Features & Benefits

✔ Enhanced Thermal Efficiency - Micro-channel designs maximize heat transfer
✔ Material Flexibility - Stainless steel, titanium, nickel alloys, and more
✔ Compact Design - High surface-area-to-volume ratio
✔ Corrosion Resistant - Suitable for aggressive media
✔ Custom Patterns - Optimized for specific thermal/flow requirements
✔ Scalable Production - From prototypes to mass production

Technical Specifications

Performance Advantages

• 40% Higher Efficiency vs. conventional designs
• Uniform Flow Distribution - Precision-etched channels
• Compact & Lightweight - Ideal for space-constrained applications
• Customizable Patterns - Herringbone, zigzag, or proprietary designs
• Leak-Free - No mechanical stress or heat distortion

Available Configurations

• Gasketed Plate Heat Exchangers
• Brazed Plate Heat Exchangers
• Welded Plate Heat Exchangers
• Micro-Channel Heat Exchangers
• Specialty Designs (e.g., diffusion-bonded)

Typical Applications

• HVAC Systems: Chillers, heat pumps

• Industrial Processes: Chemical, petrochemical

• Power Generation: Waste heat recovery

• Marine & Offshore: Compact cooling systems

• Food & Beverage: Pasteurization systems

• Electronics Cooling: High-power devices

Quality Assurance

• Material certification (EN 10204 3.1/3.2)
• 100% dimensional inspection
• Pressure testing capabilities
• Leak testing (helium mass spectrometry)
• ISO 9001:2015 certified production
