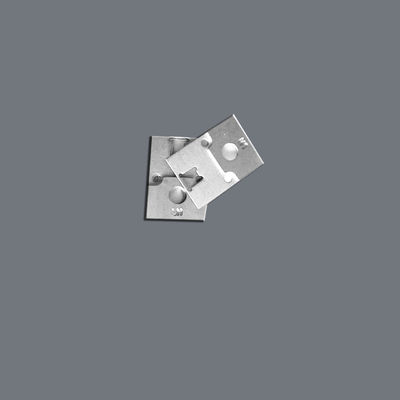

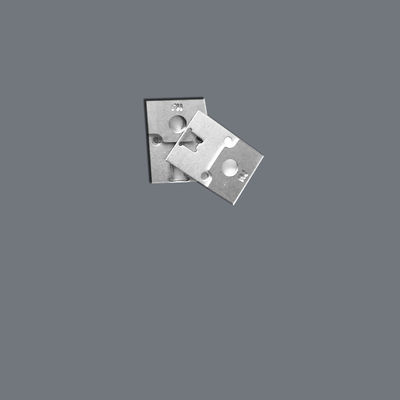

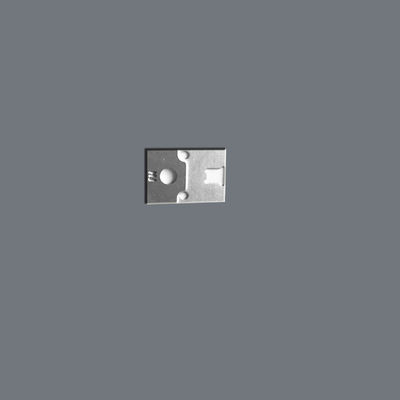

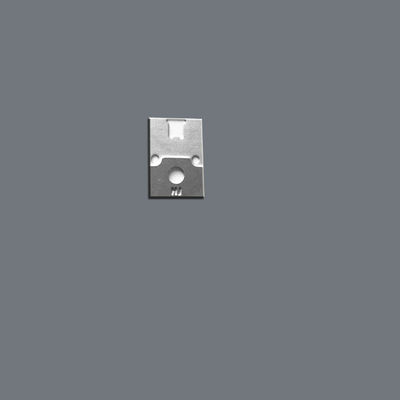

Photo Chemical Etching Metal Connectors for Electronical Industry

Name: Photo Chemical Etching Metal Connectors for Electronical Industry
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Customize
Price: 75.00 USD
Availability: InStock

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

SUS301, SUS304, SUS316

Technology:

Photo Chemical Etching

Tolerance:

+/-0.01mm

Size:

Customized

Quality Control:

100% Inspection

Edge Quality:

Smooth

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

Precision Electrical Connectors

Photo Chemical Etching Electrical Connectors

Electronics Metal Component

Product Description

Photo Chemical Etching Metal Connectors for Electronical Industry

Metal Connectors Overview
Xinhaisen Technology specializes in manufacturing high-performance chemically etched electrical connectors for demanding applications across electronics, automotive, aerospace, and industrial sectors. Our precision etching technology enables the production of ultra-fine pitch connectors with exceptional conductivity, durability, and dimensional accuracy that surpass traditional stamped alternatives.

Metal Connectors Features

·Micro-Precision
·Material Expertise
·Complex Designs
·Superior Surface Finish
·Cost-Effective
·Rapid Production

Metal Connectors Specification

Parameter	Specification
Current Rating	Up to 20A (material and design dependent)
Surface Finish	Gold, Silver, Tin, or Nickel plating options
Contact Resistance	<5mΩ (depending on material and plating)
Tolerance	±0.01mm
Material Options	Stainless Steel, Nickel,Silver,etc.

Connector Types Available

·Battery Connectors - High-current contacts for energy storage systems
·FFC/FPC Connectors - Fine-pitch flex circuit interfaces
·Board-to-Board - Precision interconnects for PCBs
·Power Connectors - High-current terminals and busbars
·RF Connectors - Shielded contacts for high-frequency applications
·Custom Spring Contacts - MEMS and micro-switch components

Performance Advantages

·Consistent Quality: Etching process eliminates stamping variability
·Design Flexibility: No limitations on contact geometry
·Durability: Excellent spring properties (especially BeCu)
·Plating Adhesion: Superior surface for reliable plating bonds
·Miniaturization: Enables ultra-compact connector designs

Quality Assurance

·ISO 9001:2015 certified manufacturing
·100% automated optical inspection (AOI)
·Cross-section analysis for critical dimensions
·Continuous plating thickness monitoring
·Mechanical and electrical testing capabilities

Welcome to contact us at any time!
