Chemical Etching Precision Stamping Metal Shims For Electrical Accessories Custom

Name: Chemical Etching Precision Stamping Metal Shims For Electrical Accessories Custom
Brand: Shenzhen Xinhaisen Technology Limited
SKU: custom
Price: 65.00 USD
Availability: InStock

Brand Name:	custom
Model Number:	custom
MOQ:	10
Price:	30-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Stainless Steel Shim Plate

Thickness:

0.03-1.5mm

Tolerance:

+/-0.01mm

Process:

Chemical Etching

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

Precision Metal Shims

Stamping Metal Shims

Chemical Etching custom metal shims

Product Description

Chemical Etching Precision Stamping Shim for Electrical Accessories Custom

Website: www.xinhsen.cn

Product Overview

Xinhsen Technology specializes in high-precision chemical etching of metal shims and spacers for industries requiring exact thickness control, complex geometries, and burr-free performance. Our etched shims ensure perfect flatness, tight tolerances, and material integrity, making them ideal for aerospace, automotive, electronics, and industrial applications.

Key Specifications

Parameter	Specification Range	Tolerance
Material Thickness	0.02mm – 1.5mm	±0.01mm
Outer Diameter	Up to 600mm (customizable)	±0.03mm
Inner Diameter	0.1mm (min)	±0.02mm
Hole Size	0.03mm (min)	±0.005mm
Flatness	--	≤0.025mm per 25mm
Materials	Stainless Steel (304, 316), Copper, Brass, Nickel, Titanium, Beryllium Copper, Phosphor Bronze	--
Surface Finish	Matte, Polished, Passivated, Plated (Ni, Ag, Au)	--

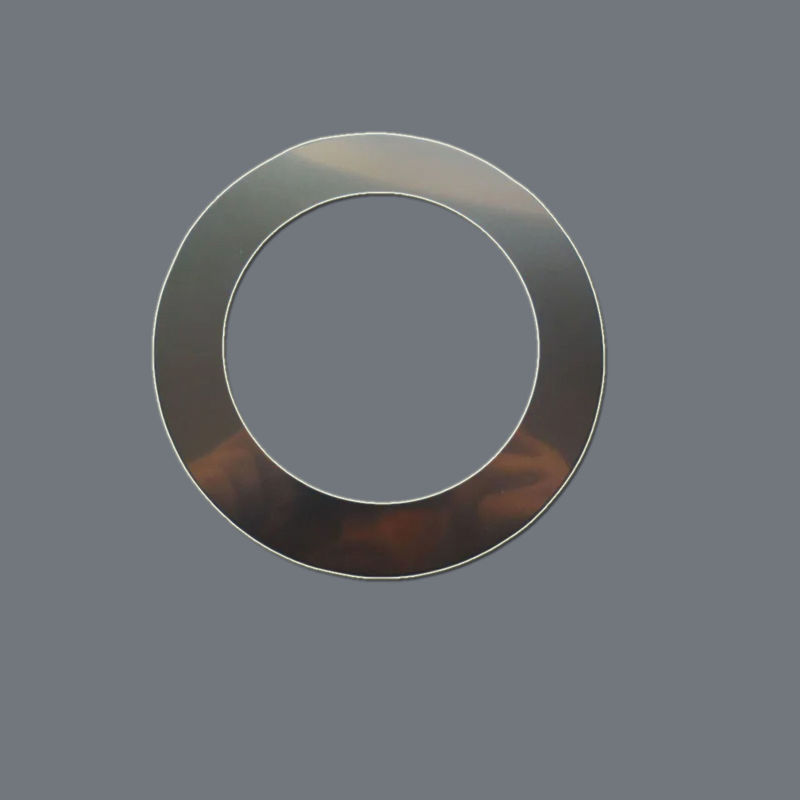

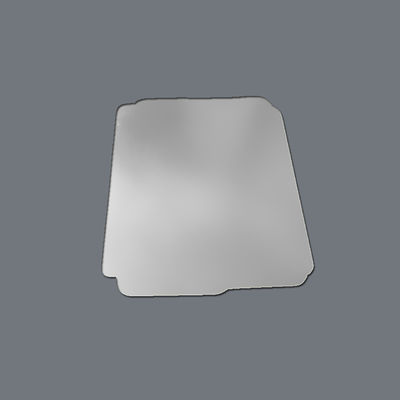

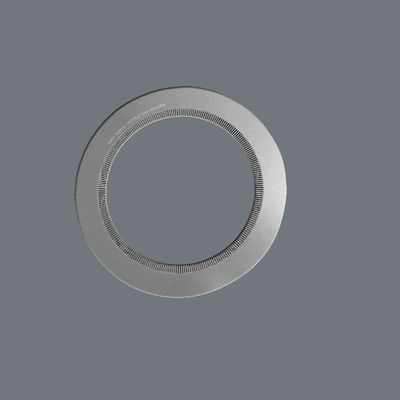

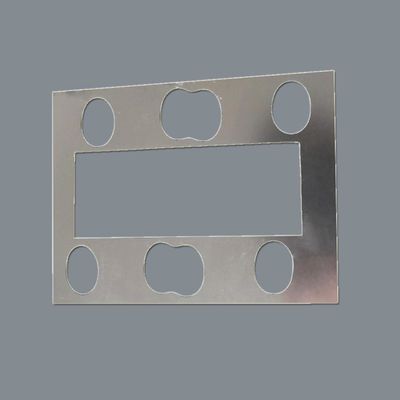

Chemical Etching Precision Stamping Metal Shims For Electrical Accessories Custom 0

Features & Advantages

✔ Burr-Free & Stress-Free: No mechanical deformation or heat-affected zones.

✔ Complex Designs: Etching enables intricate shapes (non-round, multi-hole, stepped shims).

✔ High Repeatability: Consistent thickness and geometry across large volumes.

✔ Fast Turnaround: Prototypes in days, mass production in weeks.

✔ Custom Coatings: Optional anti-corrosion, conductive, or insulating treatments.

Common Applications

Electronics: EMI shielding gaskets, battery spacers, connector insulators.

Automotive: Transmission shims, fuel injector spacers, sensor mounts.

Aerospace: Turbine engine shims, thermal barriers, vibration dampers.

Medical: Surgical tool components, implantable device spacers.

Industrial: Pump seals, bearing shims, precision machinery spacers.

Why Choose Xinhsen?

Micron-Level Precision: Achieve tolerances down to ±0.005mm for critical applications.

Wide Material Selection: From soft copper to high-strength stainless steel.

End-to-End Solutions: Design support, etching, finishing, and QC testing.

Scalability: From prototypes to millions of units with consistent quality.

Contact us for custom shim solutions tailored to your needs!
