Photo Chemical Etching Encoder Discs Customized for Measuring

Name: Photo Chemical Etching Encoder Discs Customized for Measuring
Brand: Shenzhen Xinhaisen Technology Limited
SKU: CUSTOM
Price: 75.00 USD
Availability: InStock

Brand Name:	CUSTOM
Model Number:	CUSTOM
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Metal Stainless Steel,etc.

Application:

Measure

Technique:

Chemical Etching

Tolerance:

+/_0.01mm

MOQ:

Can Be Negotiated

OEM:

Support

Service:

24hours

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

Precissional Encoder Discs

Metal Encoder Discs

Stainless Steel optical encoder disk

Product Description

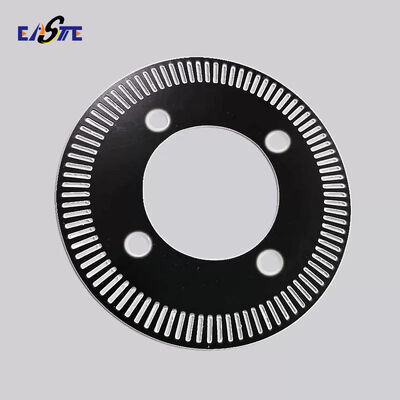

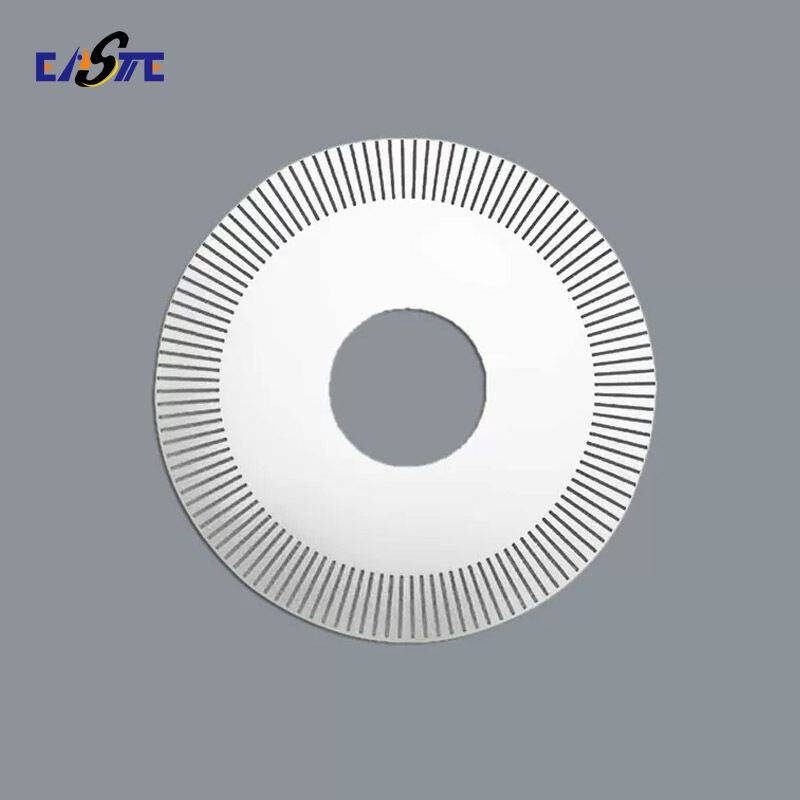

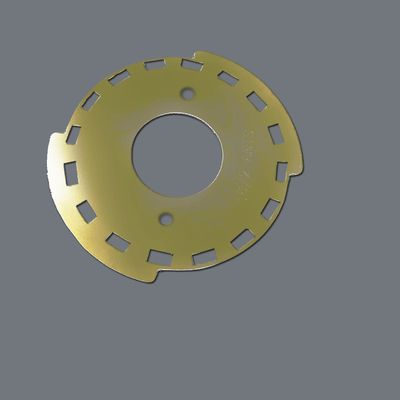

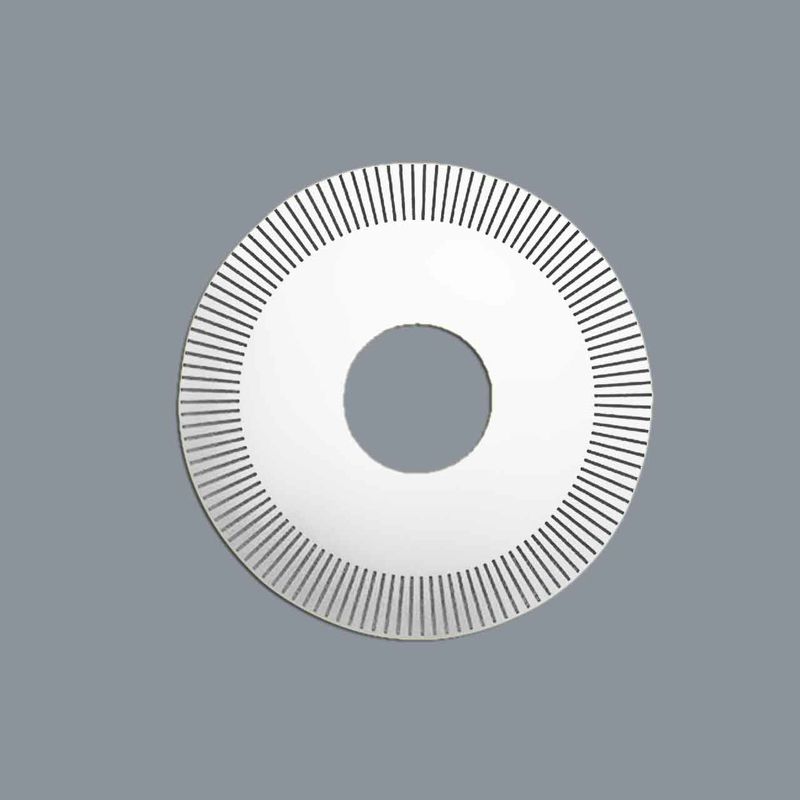

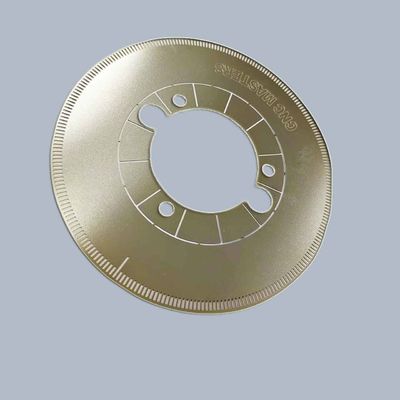

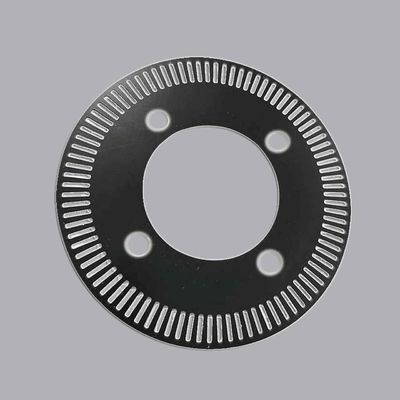

Photo Chemical Etching Encoder Discs Customized for Measuring

Encoder Discs Overview

Xinhaisen's chemically etched stainless steel encoder discs deliver unmatched precision for position and speed measurement applications. Utilizing advanced photochemical machining technology, we produce encoder discs with micron-level accuracy, perfect for demanding industrial automation, robotics, and motion control systems.

Encoder Discs Features

Ultra-High Precision: Achieves extremely fine lines and slots for accurate signal generation.
Excellent Edge Quality: Clean, vertical, burr-free edges ensure consistent optical/magnetic properties.
Low Inertia: Thin, lightweight construction minimizes rotational mass.
Customizable Patterns: Radial lines, concentric circles, or unique codes (e.g., Gray code) available.
Material Versatility: Suitable for optical (opaque/transparent patterns) and magnetic applications.
High Durability: Metal construction resists wear, temperature variation, and humidity better than film discs.

Encoder Discs Specification

Parameter	Specification
Thickness	0.05mm - 0.4mm
Tolerance	+/-0.01mm
Surface Treatments	Ni plating, passivation, black oxide
Materials	Stainless steel, brass, copper, nickel, aluminum,etc.
Aspect Ratio	Up to 1:1 (slot width vs. material thickness)

Encoder Discs Applications

Industrial Automation: Servo motors, CNC machines, robotics.
Medical Devices: Surgical instruments, imaging equipment, pumps.
Aerospace & Defense: Guidance systems, actuators, avionics.
Consumer Electronics: Printers, scanners, high-fidelity audio equipment.
Automotive: Steering angle sensors, throttle position sensors, motor encoders.
Scientific Instruments: Telescopes, spectrometers, precision stages.

FAQ

1.How can we guarantee quality?

·Always a pre-production sample before mass production;

·Always final Inspection before shipment.

2.What can you buy from us?

·Photo chemical etching

·Micro-channel plate etching

·Precision filter mesh

·Metal encoder discs

·Precision metal shims

3. Why should you buy from us not from other suppliers?

Xinhaisen is established to specialized in the production of high-quality, finite and micro-size photo chemical etching metal products.Our seventy professional staff specialized in research and development , manufacturing and marketing service.

5. What services can we provide?

·Accepted Delivery Terms: FOB,CFR,CIF,EXW；

·Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;

·Accepted Payment Type: T/T,Paypal,etc.

Easy to order! Welcome to contact us at any time!
