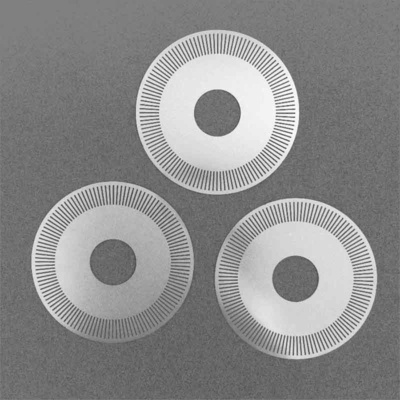

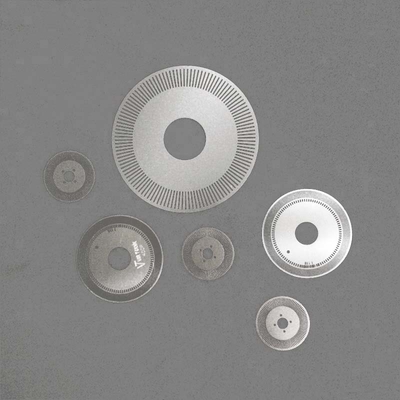

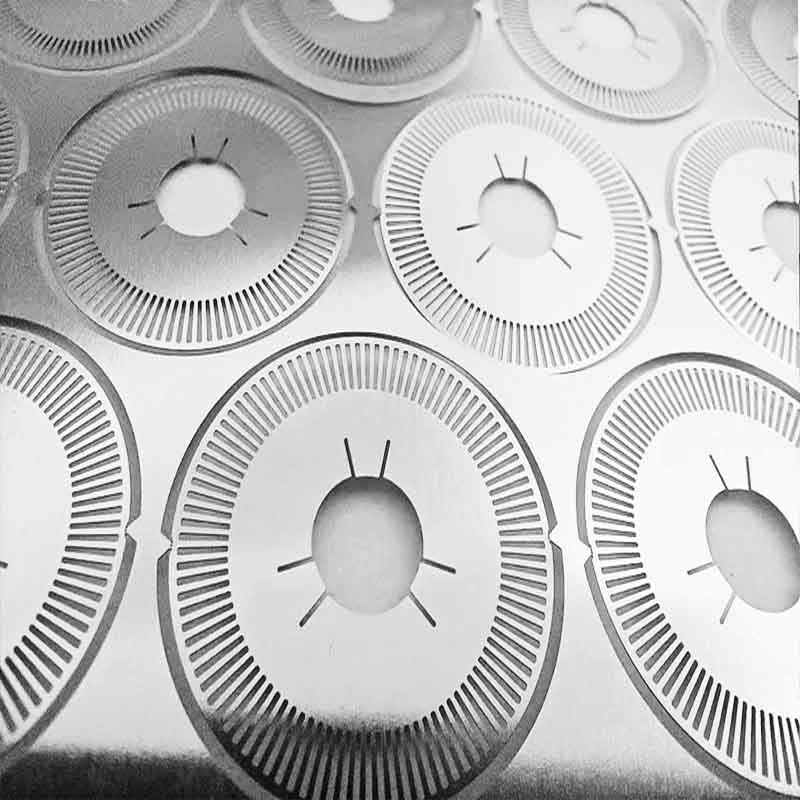

Precision Etched Stainless Steel Optical Encoder Discs

Precision Etched Stainless Steel Optical Encoder Discs

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Finish:

Polishing ,plating

Technique:

Chemical Etching

Material Capabilities:

Stainless Steel

Design:

Custom Design

Oem:

Support

Service:

24hours

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

stainless steel optical encoder discs

precision etched encoder code discs

optical encoder discs with warranty

Product Description

Precision Metal Code Discs for Optical Encoders & Industrial Automation

Product Overview

Xinhsen Technology specializes in manufacturing high-precision metal code discs through advanced chemical etching processes. Our code discs are widely used in optical encoders, industrial automation, robotics, medical devices, and aerospace applications, ensuring accurate position/speed detection and motion control.

Key Features & Advantages

Ultra-Precision: Micro-hole diameter down to 0.03mm, line width up to 0.015mm.

Material Versatility: Stainless steel, copper, aluminum, titanium, and specialty alloys.

Thickness Range: 0.02mm–3mm with uniformity tolerance ±0.03mm.

Rapid Prototyping: Fast turnaround for samples and bulk orders.

Custom Designs: Support complex patterns (slots, radial lines, binary codes).

Technical Parameters

Material Options	Stainless Steel (304/316), Brass, Copper, Titanium
Standard Thickness	0.05mm, 0.1mm, 0.2mm, 0.5mm, 1.0mm (Customizable)
Diameter Range	5mm–500mm (or per customer drawing)
Minimum Aperture	0.03mm
Line Width	0.015mm–0.5mm
Position Accuracy	±0.03mm
Etching Tolerance	±0.01mm (for high-end applications)
Surface Finish	Matte, Polished, Anti-reflective coating
