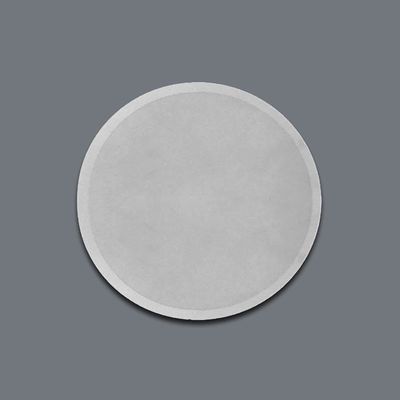

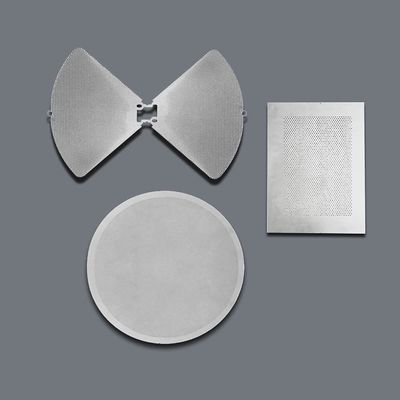

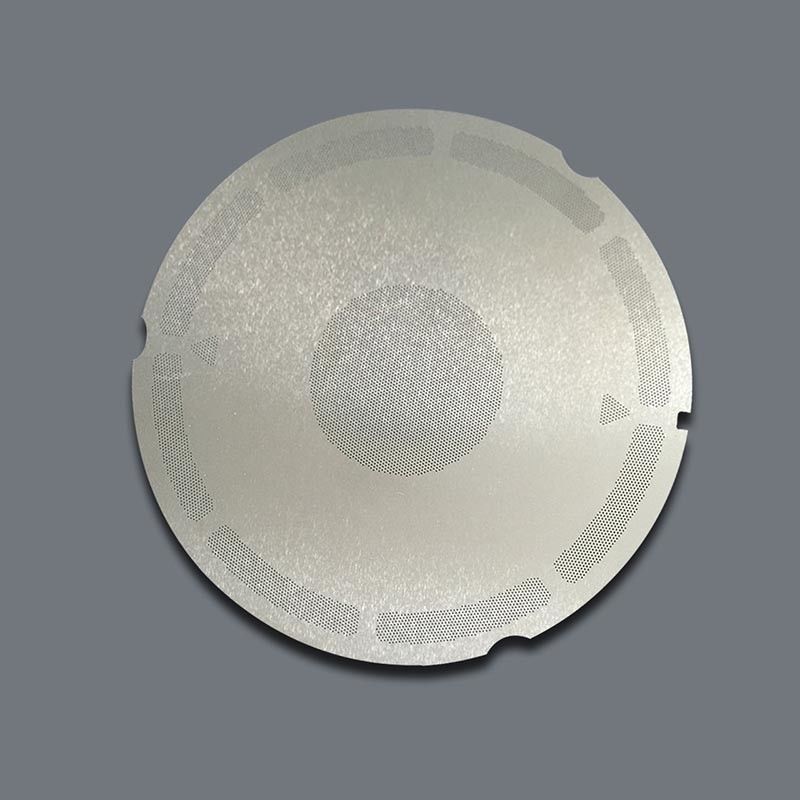

Precision 0.1mm 0.2mm Stainless Steel Etched Screens & Meshes For Filtration

Precision 0.1mm 0.2mm Stainless Steel Etched Screens & Meshes For Filtration


Xinhaisen provides chemical etching solutions for producing Stainless Steel Etched Screens & Meshes, delivering faster turnaround, greater design flexibility, and more cost-efficient results compared to conventional perforation methods.

Stainless Steel Etched Screens & Meshes can be manufactured through processes like stamping or laser cutting, yet these methods often struggle with intricate patterns or ultra-fine precision. Chemical etching overcomes these challenges—delivering highly complex designs with outstanding accuracy, all while ensuring the surface remains free from stress and burrs.

Specifications of Stainless Steel Etched Screens & Meshes

Photochemical machining is a high-precision subtractive process that removes material from metal sheets through controlled chemical reactions. By utilizing cost-efficient digital tooling and producing all mesh openings in a single step, it enables the fabrication of components with nearly limitless complexity, structures, and geometries. This technique reduces both costs and lead times while allowing rapid, hassle-free design modifications.

Stainless Steel Etched Screens & Meshes can be manufactured with a minimum aperture tolerance of 0.02 mm and a minimum wire width of 0.01 mm, accommodating material thicknesses from 0.02 mm to 3 mm. Our chemical etching process guarantees that every screen is produced completely burr-free and free from mechanical stress.

Benifits of Etched Metal Filter Screens

                             Unlimited Complex                                     Smallest Opening to 0.02mm                                 Burr-Free & Stress-Free                       Prototype to High Volume Production

How to Custom Metal Filter Screens from Xinhaisen?

1. Send Your Design Provide your drawing file (DXF, DWG, STP, PDF) with dimensions, material type, and thickness.

2. Get a Quote We’ll evaluate your design and send you a quotation based on quantity, material, and complexity.

3. Confirm & Start Production Once the order is confirmed, we’ll prepare phototools and begin the etching process.

4. Quality Inspection All parts go through strict quality checks to ensure accuracy and consistency.

5. Packaging & Delivery Your parts will be carefully packaged and shipped to your address on time.

Ready to discuss your Metal Filter Screens design?
