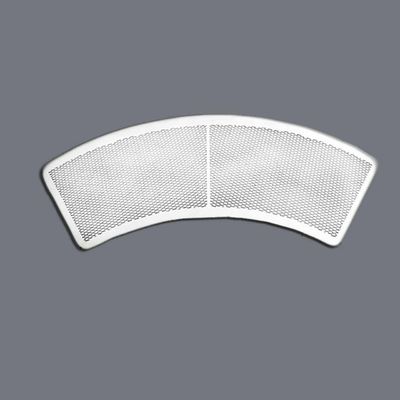

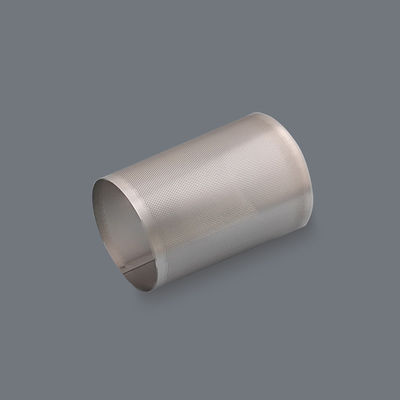

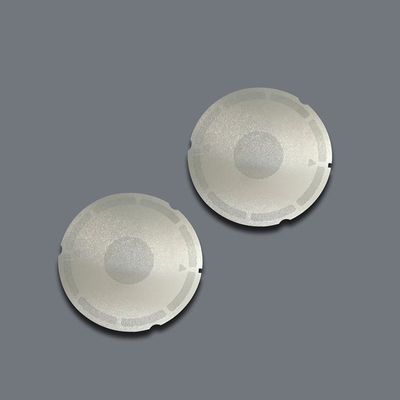

0.1mm 304 Stainless Steel Photo Etched Meshes & Filters & Screens For Various Application

0.1mm 304 Stainless Steel Photo Etched Meshes & Filters & Screens For Various Application


Xinhaisen manufacture photo etched components from various metals suitable for Aerospace, Filtration, Automotive, Precision Engineering, and many other industries. Our core competitiveness lies in the precision machining of metal components, such as bipolar plates, meshes, filters & screens, electronic components, and other products with high precision requirements.

Types of materials we etch

Stainless steel, Copper, Titanium, Nickel, Aluminum and more custom alloys are available for selection.

Xinhaisen's Etching process capability:

We have advanced equipment, leading technology, unique formula of medicine, and a group of energetic, high-spirited and experienced teams.

Owned equipment:

Automatic cutting machine: 2 sets

Cleaning line: 3 sets

Exposure machine: 5 sets, the maximum exposure size is 1.8 meters

Etching machine: 6 sets, accuracy +/-0.01mm

Demolding line: 2 sets

Measuring equipment: 4 fully automatic 2.5-dimensional, 1 Keyence one-button measuring machine

What's  Photo Chemical Machining?

Photo Chemical Machining: also known as photochemical etching, refers to the process of exposing the metal part of the protective film in the area to be etched after film plate making, exposure and development, and contacting the chemical solution during etching to achieve the effect of dissolution and corrosion, forming a concave-convex or hollow-out effect; etching technology belongs to the field of photosensitive chemical technology, and is a method of using photolithography to process thin precision metal products.

Photo Chemical Machining Process:

Benifits of Metal Chemical Etching

                             Unlimited Complex                                     Smallest Opening to 0.02mm                                 Burr-Free & Stress-Free                       Prototype to High Volume Production

How to Custom Metal Components from Xinhaisen?

1. Send Your Design Provide your drawing file (DXF, DWG, STP, PDF) with dimensions, material type, and thickness.

2. Get a Quote We’ll evaluate your design and send you a quotation based on quantity, material, and complexity.

3. Confirm & Start Production Once the order is confirmed, we’ll prepare phototools and begin the etching process.

4. Quality Inspection All parts go through strict quality checks to ensure accuracy and consistency.

5. Packaging & Delivery Your parts will be carefully packaged and shipped to your address on time.

Ready to discuss your Metal Filter Screens design?
